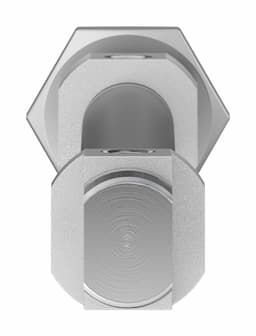

Product Model
dsnu-5/16"-4"-p-a
Selling Points
- 1The Festo DSNU-5/16"-4"-P-A pneumatic cylinder is designed to deliver high-performance in various automation applications, ensuring reliable and efficient operation.
- 2This cylinder features a double-acting design, allowing for both extension and retraction strokes, making it versatile for a wide range of applications.
- 3Equipped with elastic cushioning at both ends, this cylinder provides smooth operation and reduces wear and tear, extending its service life.
- 4The DSNU-5/16"-4"-P-A includes a built-in magnet for position sensing, enhancing precision and accuracy in automation tasks.
- 5Designed according to the ISO6432 standard, this cylinder ensures compatibility with various industrial systems and applications, making it a reliable choice for automation needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 101.6mm | Piston diameter | 5/16" |
Piston rod thread | 6-32 UNC-2A | Based on norm | ISO 6432 |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Piston rod end | External thread | Structural design | Piston Piston rod |
Position sensing | For proximity sensor | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 0.02996J | Theoretical force at 6 bar, retracting | 22.686N |
Theoretical force at 6 bar, advancing | 30.248N | Moving mass at 0?mm stroke | 7.513g |
Additional moving mass per 10?mm stroke | 0.992g | Basic weight with 0?mm stroke | 34.587g |
Additional weight per 10?mm stroke | 2.41g | Type of mounting | With accessories |
Pneumatic connection | 10-32 UNF-2B | Cover material | Wrought aluminum alloy |
Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 546397 |
Specifications may be subject to change without notice
