Product Model

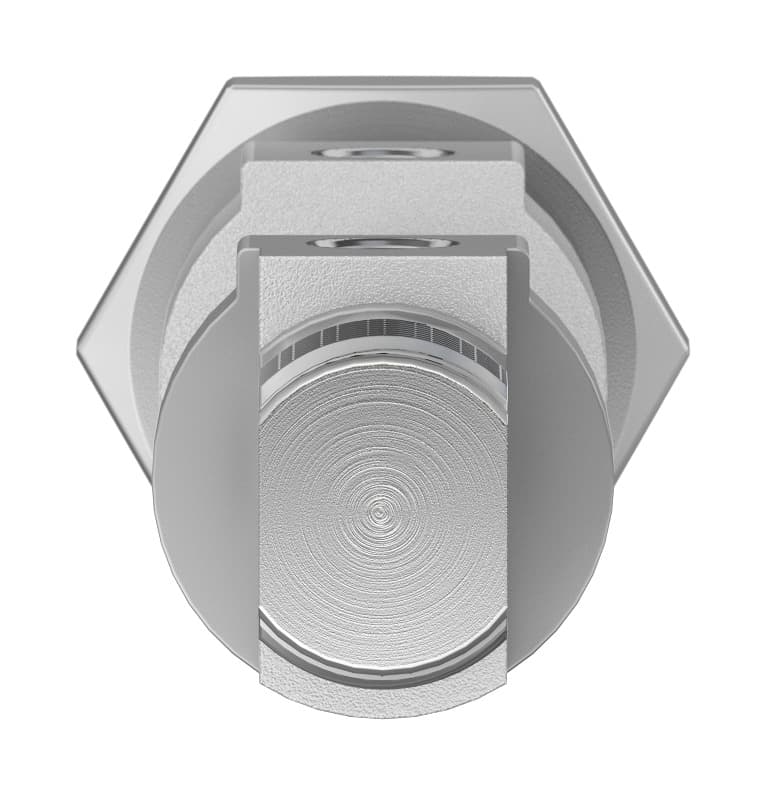

dsnu-5/16"- -p-a
Selling Points
- 1The Festo DSNU-5/16" pneumatic cylinder offers a wide range of stroke lengths, from 0.04 to 4 inches, making it versatile for various industrial applications.
- 2This cylinder features double-acting capabilities, allowing for both extension and retraction, enhancing its functionality and efficiency in operations.
- 3The DSNU-5/16" cylinder is constructed with high-quality materials, ensuring durability and long service life, even in demanding industrial environments.
- 4It includes flexible cushioning rings at both ends (P) and adjustable air cushioning (PPV), which help in reducing shock loads and improving overall performance.
- 5The cylinder is compatible with various accessories, including flange mounting and swivel mounting options, providing flexibility in installation and integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10.16mm 101.6mm | Piston diameter | 5/16" |
Piston rod thread | 6-32 UNC-2A | Based on norm | ISO 6432 |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Piston rod end | External thread | Structural design | Piston Piston rod |
Position sensing | For proximity sensor | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 0.03J | Theoretical force at 6 bar, retracting | 20.106N |
Theoretical force at 6 bar, advancing | 26.867N | Moving mass at 0?mm stroke | 7.513g |
Additional weight per 10?mm stroke | 0.992g | Type of mounting | With accessories |
Pneumatic connection | 10-32 UNF-2B | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 548482 |
Specifications may be subject to change without notice
