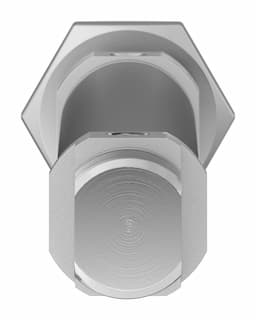

Product Model
dsnu-5/8"- -ppv-a
Selling Points
- 1The Festo DSNU-5/8" double-acting round cylinder offers a wide range of stroke lengths up to 20 inches, making it versatile for various industrial applications.
- 2Equipped with adjustable air cushioning at both ends (PPV variant), this cylinder ensures smooth operation and extended service life.
- 3The DSNU-5/8" cylinder meets the highest requirements for running characteristics, service life, and load-carrying ability, ensuring reliable performance in demanding environments.
- 4Available with a magnet for position sensing, this cylinder allows for precise detection of piston position, enhancing control and accuracy in automation systems.
- 5Designed with corrosion resistance class 2 according to Festo standard 940 070, the DSNU-5/8" cylinder is suitable for use in normal industrial environments subjected to contact with coolants or lubricating agents.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10.16mm 203.2mm | Piston diameter | 5/8" |
Piston rod thread | 10-32 UNF-2A | Based on norm | ISO 6432 |
Cushioning | Pneumatic cushioning, adjustable at both ends | Mounting position | Any |
Piston rod end | External thread | Structural design | Piston Piston rod |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 0.14995J | Cushioning length | 11.938mm |
Theoretical force at 6 bar, retracting | 92.256N | Theoretical force at 6 bar, advancing | 107.291N |
Moving mass at 0?mm stroke | 22.992g | Additional weight per 10?mm stroke | 2.013g |
Type of mounting | With accessories | Pneumatic connection | 10-32 UNF-2B |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 548501 |
Specifications may be subject to change without notice
