Product Model

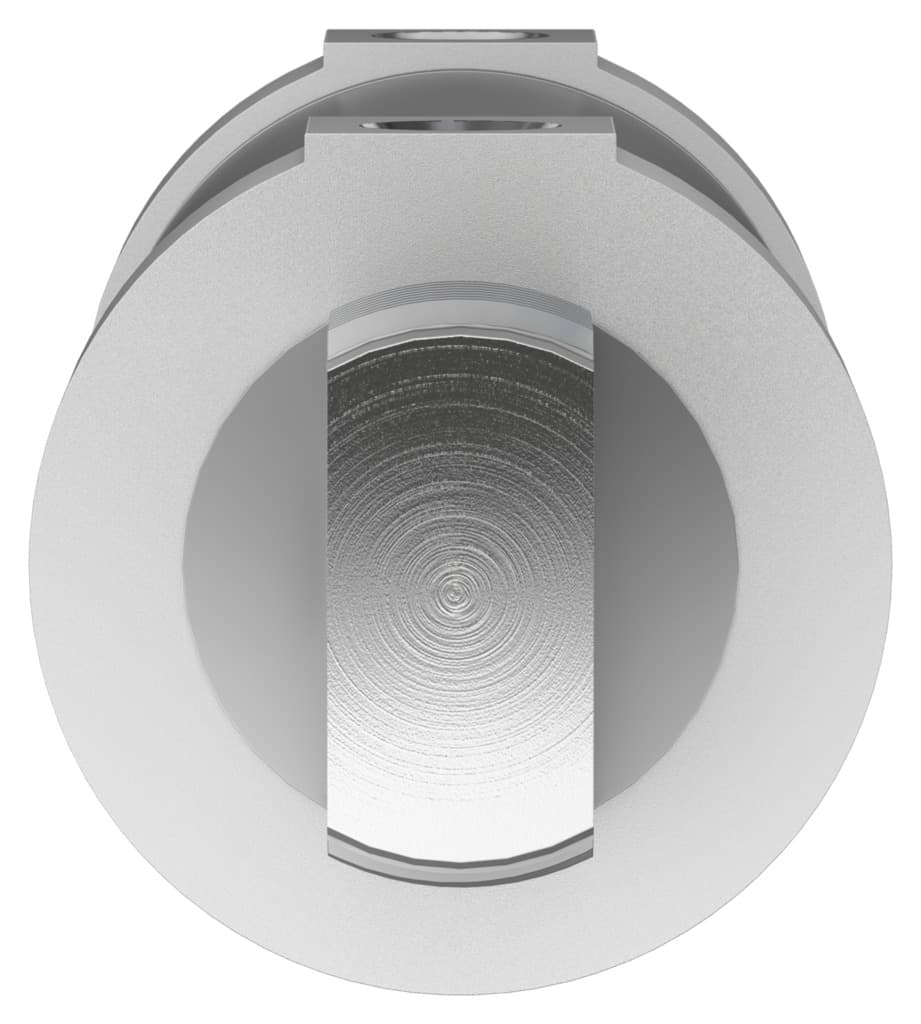

dsnu-63-100-p-a
Selling Points
- 1The DSNU-63-100-P-A pneumatic cylinder offers a stroke of 100 mm and a piston diameter of 63 mm, ensuring precise and efficient operation in various industrial settings.
- 2This cylinder features optional mounting positions, allowing for flexible installation and integration into different automation systems.
- 3Equipped with elastic cushioning rings/plates at both ends, the DSNU-63-100-P-A provides smooth operation and reduces wear and tear on the cylinder.
- 4Designed to operate with compressed air to ISO 8573-1:2010 standards, this cylinder ensures reliable performance in a variety of environments.
- 5Built with high-alloy stainless steel for the cylinder barrel and high-alloy steel for the piston rod, the DSNU-63-100-P-A offers excellent corrosion resistance and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 100mm | Piston diameter | 63 mm |
Piston rod thread | M16x1.5 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 1681.9N |
Theoretical force at 6 bar, advancing | 1870.3N | Moving mass | 709g |
Product weight | 1885g | Type of mounting | With accessories |
Pneumatic connection | G3/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
Piston rod material | High-alloy steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 196014 |
Specifications may be subject to change without notice
