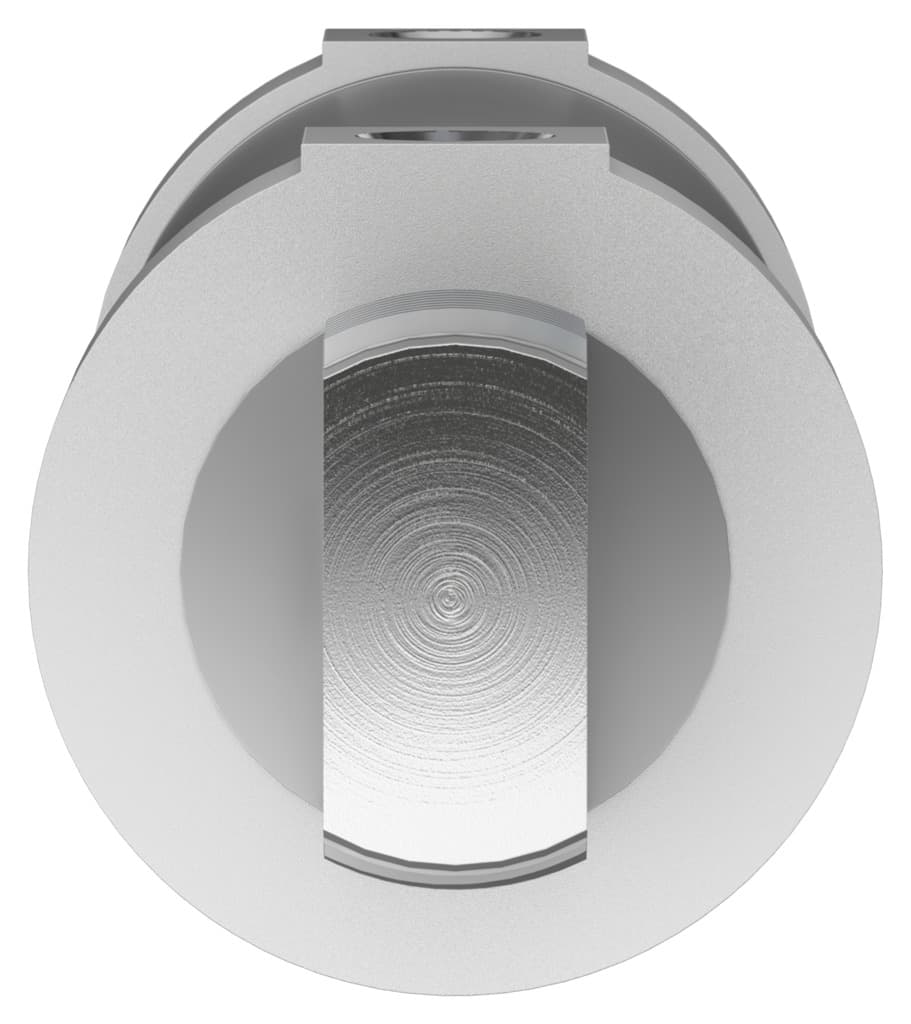

Festo DSNU-63-125-P-A Pneumatic Cylinder Specifications

Selling Points

1The DSNU-63-125-P-A features a stroke of 125 mm and a piston diameter of 63 mm, making it suitable for a variety of industrial applications.
2This cylinder operates within a pressure range of 0.1 MPa to 1 MPa (1 bar to 10 bar), ensuring reliable performance under different conditions.
3Equipped with elastic cushioning rings/plates at both ends, the DSNU-63-125-P-A offers smooth operation and adjustable mounting positions.
4Constructed from high-alloy stainless steel for the cylinder barrel and high-alloy steel for the piston rod, this cylinder provides excellent corrosion resistance and durability.
5Compatible with compressed air to ISO 8573-1:2010, this cylinder supports position detection via proximity switches and can operate in lubricated conditions for enhanced performance.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	125mm	Piston diameter	63 mm
Piston rod thread	M16x1.5	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Structural design	Piston Piston rod Cylinder barrel
Position sensing	For proximity sensor	Symbol	00991217
Operating pressure	1bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, retracting	1681.9N
Theoretical force at 6 bar, advancing	1870.3N	Moving mass	772g
Product weight	1995g	Type of mounting	With accessories
Pneumatic connection	G3/8	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy	Seals material	NBR TPE-U(PU)
Piston rod material	High-alloy steel	Material of cylinder barrel	High-alloy stainless steel
Manufacturer ID	196015

Specifications may be subject to change without notice
