Product Model

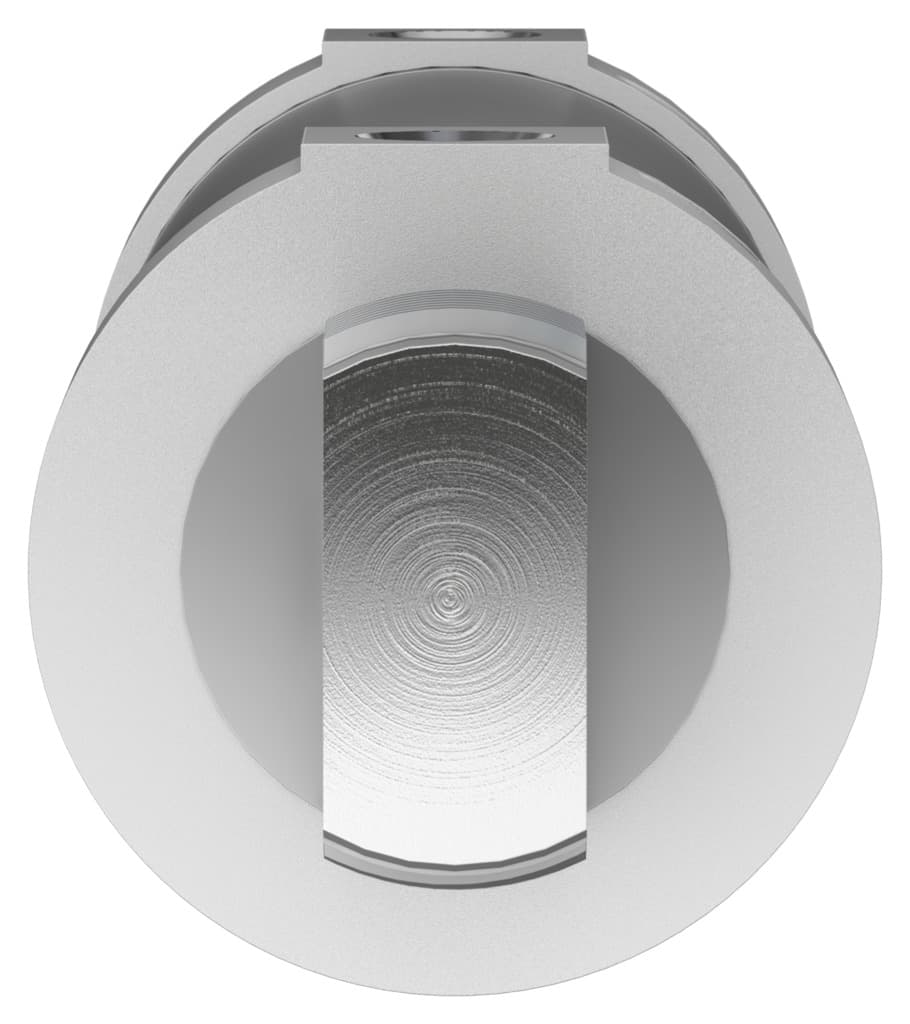

dsnu-63-125-ppv-a
Selling Points
- 1The Festo DSNU-63-125-PPV-A cylinder offers adjustable pneumatic dampening on both sides, ensuring smooth and controlled movements in various industrial applications.
- 2This cylinder operates in a double-acting mode, allowing for both extension and retraction, making it versatile for a wide range of automation tasks.
- 3Designed for position detection, the DSNU-63-125-PPV-A cylinder is compatible with proximity sensors, enhancing precision and control in your automation systems.
- 4Constructed from high-alloyed stainless steel and aluminum, this cylinder ensures durability and resistance to corrosion, making it suitable for demanding industrial environments.
- 5With optional mounting positions and adjustable end-position cushioning, the Festo DSNU-63-125-PPV-A cylinder offers flexibility in installation, accommodating various application requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 125mm | Piston diameter | 63 mm |
Piston rod thread | M16x1.5 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Cushioning length | 21mm |
Theoretical force at 6 bar, retracting | 1681.9N | Theoretical force at 6 bar, advancing | 1870.3N |
Moving mass | 772g | Product weight | 1995g |
Type of mounting | With accessories | Pneumatic connection | G3/8 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy steel |
Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 196055 |
Specifications may be subject to change without notice
