Product Model

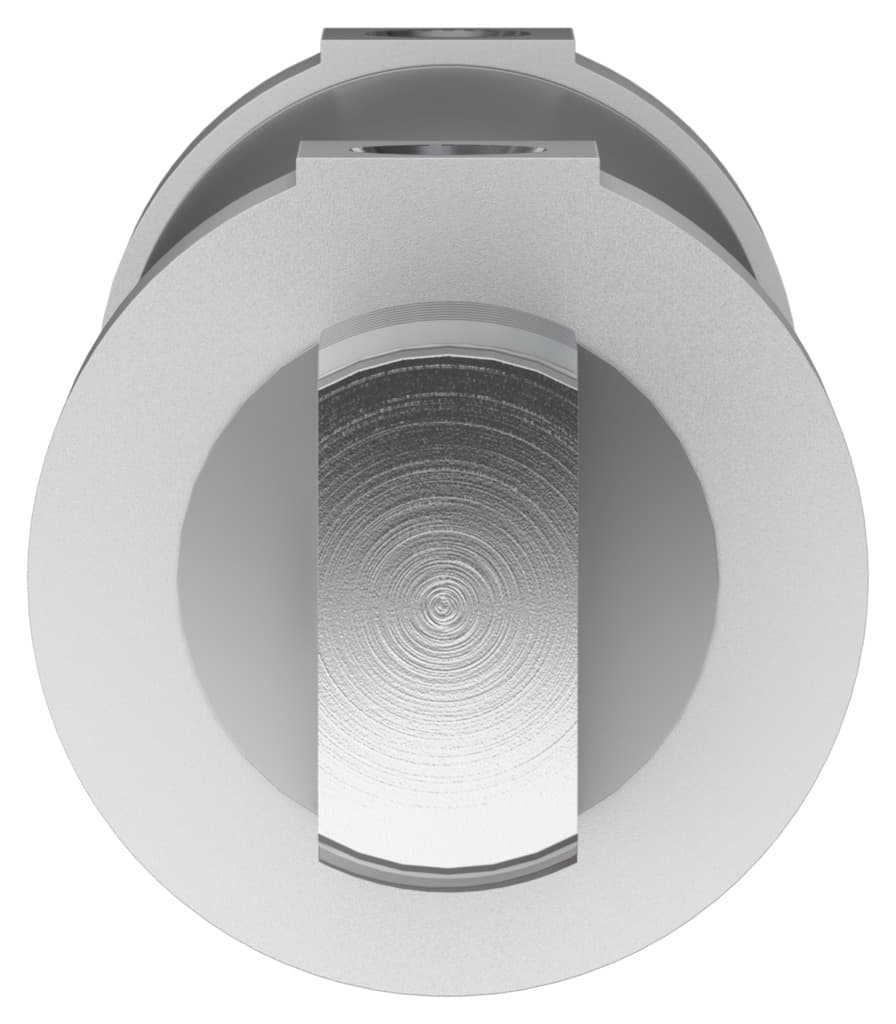

dsnu-63-160-ppv-a
Selling Points
- 1The DSNU-63-160-PPV-A round cylinder offers adjustable pneumatic cushioning at both ends, ensuring smooth and controlled movements in various industrial applications.
- 2This cylinder operates in a double-acting mode, allowing for both forward and return strokes with the same force, making it versatile for different operational needs.
- 3With a corrosion resistance class of CRC 2, the DSNU-63-160-PPV-A is designed to withstand moderate corrosion stress, ensuring durability in harsh environments.
- 4The cylinder operates within a wide pressure range of 1 to 10 bar, making it suitable for various industrial applications that require different pressure levels.
- 5Made from high-alloyed stainless steel and aluminum materials, the DSNU-63-160-PPV-A offers a robust construction that ensures long-lasting performance and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 160mm | Piston diameter | 63 mm |
Piston rod thread | M16x1.5 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Cushioning length | 21mm |
Theoretical force at 6 bar, retracting | 1681.9N | Theoretical force at 6 bar, advancing | 1870.3N |
Moving mass | 859g | Product weight | 2149g |
Type of mounting | With accessories | Pneumatic connection | G3/8 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy steel |
Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 196056 |
Specifications may be subject to change without notice
