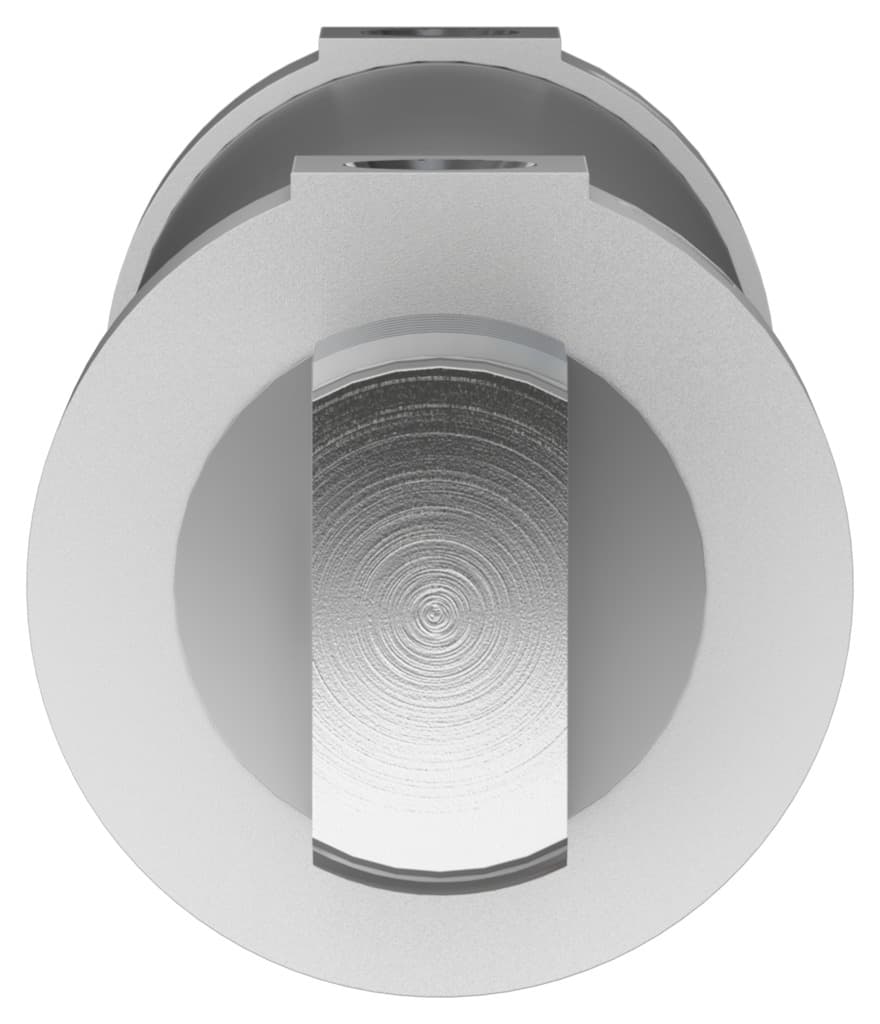

Festo DSNU-63-200-PPV-A Pneumatic Cylinder - High-Quality Automation Solutions

Selling Points

1The DSNU-63-200-PPV-A features adjustable pneumatic cushioning at both ends, ensuring smooth and controlled movements in various applications.
2This cylinder operates within a pressure range of 0.1 MPa to 1 MPa (1 bar to 10 bar), making it suitable for demanding industrial tasks.
3Equipped with a proximity switch for precise position sensing, the DSNU-63-200-PPV-A enhances accuracy and reliability in automation systems.
4Available with optional accessories, this cylinder offers flexible mounting positions, allowing for easy integration into diverse industrial setups.
5With a corrosion resistance class of CRC 2, the DSNU-63-200-PPV-A provides moderate corrosion stress protection, ensuring durability in various environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	200mm	Piston diameter	63 mm
Piston rod thread	M16x1.5	Cushioning	Pneumatic cushioning, adjustable at both ends
Mounting position	Any	Structural design	Piston Piston rod Cylinder barrel
Position sensing	For proximity sensor	Symbol	00991235
Operating pressure	1bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Cushioning length	21mm
Theoretical force at 6 bar, retracting	1681.9N	Theoretical force at 6 bar, advancing	1870.3N
Moving mass	959g	Product weight	2325g
Type of mounting	With accessories	Pneumatic connection	G3/8
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy
Seals material	NBR TPE-U(PU)	Piston rod material	High-alloy steel
Material of cylinder barrel	High-alloy stainless steel	Manufacturer ID	196057

Specifications may be subject to change without notice
