Product Model

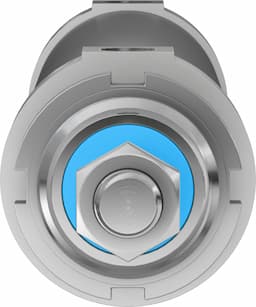

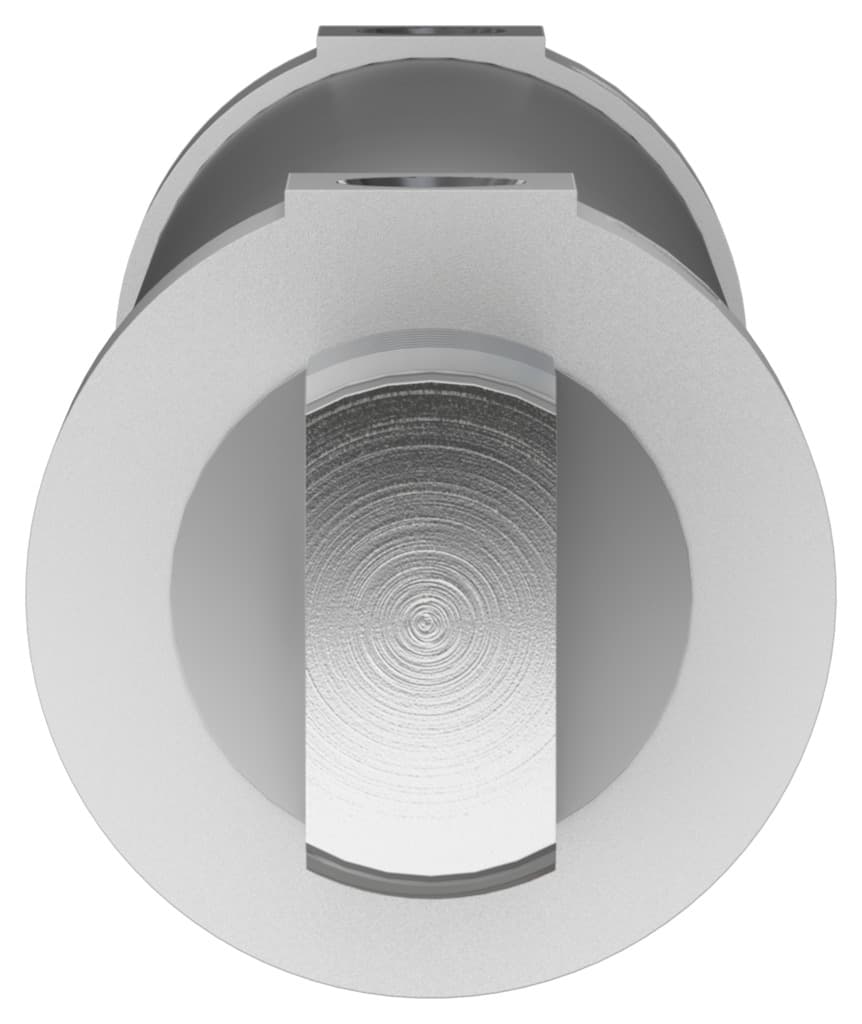

dsnu-63-250-ppv-a
Selling Points
- 1The DSNU-63-250-PPV-A offers adjustable pneumatic cushioning at both ends, ensuring smooth and controlled movements in your industrial automation setup.
- 2Made from high-alloy stainless steel and other corrosion-resistant materials, this cylinder provides a durable solution for harsh industrial environments.
- 3With a stroke length of 250 mm and a piston diameter of 63 mm, this cylinder is designed for efficient and reliable operation in various industrial applications.
- 4The DSNU-63-250-PPV-A offers flexible mounting options, allowing for easy integration into your existing automation systems.
- 5This cylinder meets ISO 8573-1:2010 standards for compressed air quality and is compatible with oil lubrication, ensuring compliance with industry regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 250mm | Piston diameter | 63 mm |
Piston rod thread | M16x1.5 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Cushioning length | 21mm |
Theoretical force at 6 bar, retracting | 1681.9N | Theoretical force at 6 bar, advancing | 1870.3N |
Moving mass | 1084g | Product weight | 2545g |
Type of mounting | With accessories | Pneumatic connection | G3/8 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy steel |
Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 196058 |
Specifications may be subject to change without notice
