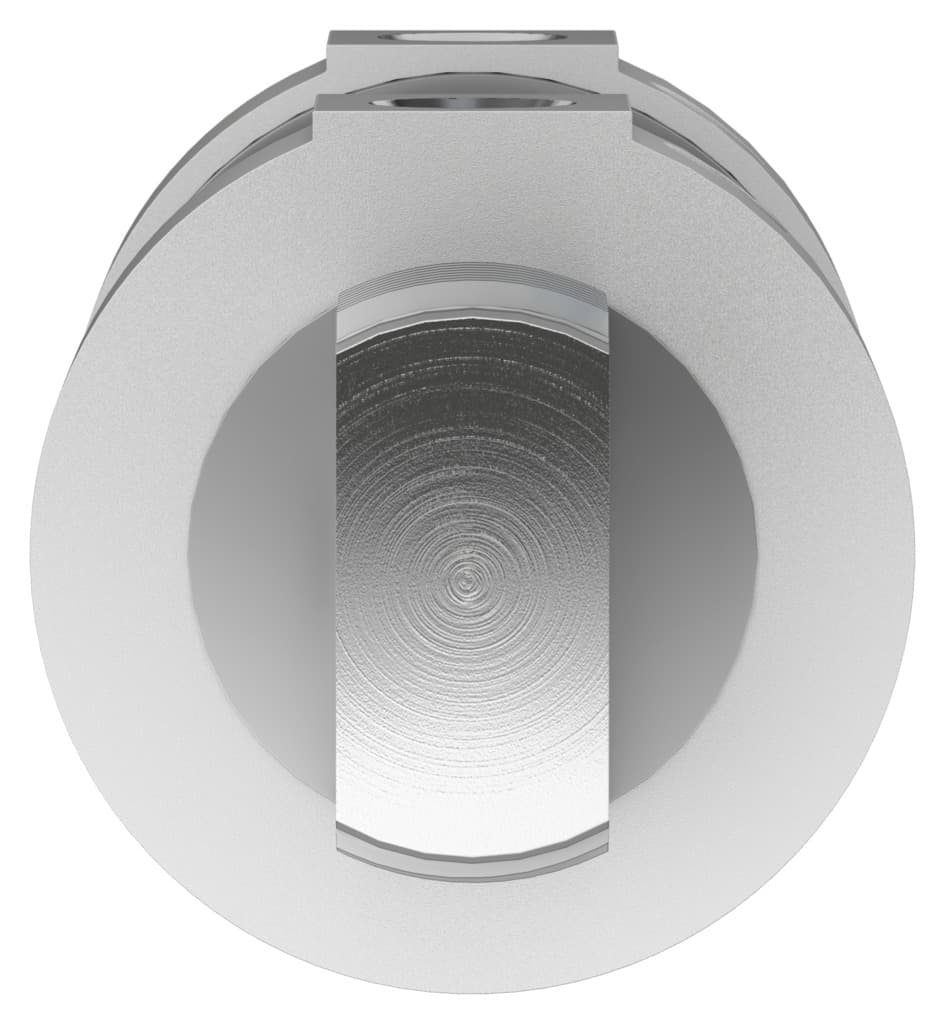

Festo DSNU-63-50-PPV-A: High-Performance Pneumatic Cylinder

Selling Points

1The Festo DSNU-63-50-PPV-A features a stroke of 50 mm and a piston diameter of 63 mm, making it suitable for a variety of industrial applications.
2This pneumatic cylinder includes adjustable pneumatic cushioning at both ends, ensuring smooth and controlled motion.
3The cylinder offers optional mounting positions, providing flexibility in installation and integration with other components.
4Designed for slow stroke movements, the DSNU-63-50-PPV-A ensures constant motion without stick-slip, enhancing precision and reliability.
5With its corrosion-resistant materials and seals, this cylinder provides a long service life and protection against various industrial media, including dust, chips, oil, grease, and fuel.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	50mm	Piston diameter	63 mm
Piston rod thread	M16x1.5	Cushioning	Pneumatic cushioning, adjustable at both ends
Mounting position	Any	Structural design	Piston Piston rod Cylinder barrel
Position sensing	For proximity sensor	Symbol	00991235
Operating pressure	1bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Cushioning length	21mm
Theoretical force at 6 bar, retracting	1681.9N	Theoretical force at 6 bar, advancing	1870.3N
Moving mass	584g	Product weight	1665g
Type of mounting	With accessories	Pneumatic connection	G3/8
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy
Seals material	NBR TPE-U(PU)	Piston rod material	High-alloy steel
Material of cylinder barrel	High-alloy stainless steel	Manufacturer ID	196052

Specifications may be subject to change without notice
