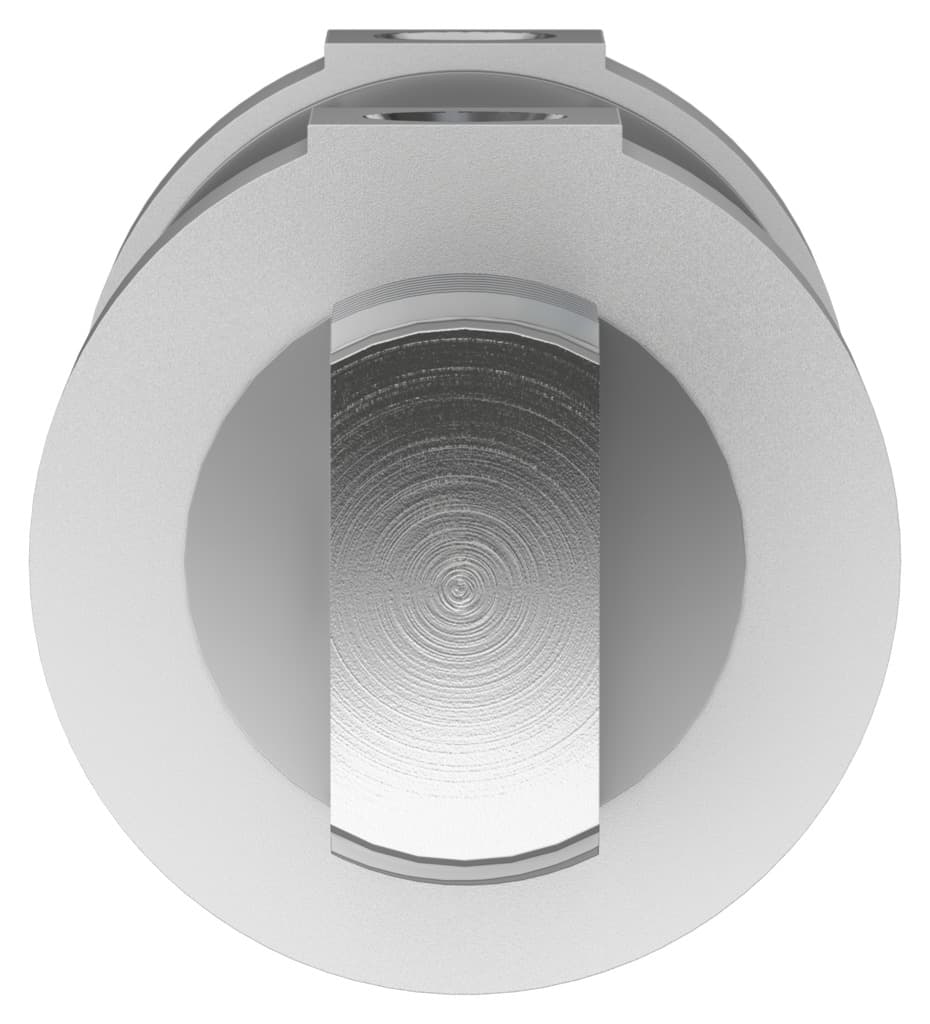

Festo DSNU-63-80-P-A Round Cylinder: High-Quality Pneumatic Solution

Selling Points

1The Festo DSNU-63-80-P-A round cylinder offers a stroke length of 80mm, making it suitable for various industrial applications requiring precise movement.
2With a piston diameter of 63mm and an M16x1.5 piston rod thread, this cylinder provides robust and reliable operation in pneumatic systems.
3Equipped with elastic cushioning rings at both ends, the DSNU-63-80-P-A ensures smooth operation and reduces wear on the cylinder components.
4Designed for double-acting operation, this cylinder can be used in both retracting and advancing modes, enhancing its versatility in different applications.
5Built with high-quality materials including high-alloy stainless steel for the cylinder barrel and high-alloy steel for the piston rod, ensuring durability and resistance to corrosion.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	80mm	Piston diameter	63 mm
Piston rod thread	M16x1.5	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Structural design	Piston Piston rod Cylinder barrel
Position sensing	For proximity sensor	Symbol	00991217
Operating pressure	1bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, retracting	1681.9N
Theoretical force at 6 bar, advancing	1870.3N	Moving mass	659g
Product weight	1797g	Type of mounting	With accessories
Pneumatic connection	G3/8	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy	Seals material	NBR TPE-U(PU)
Piston rod material	High-alloy steel	Material of cylinder barrel	High-alloy stainless steel
Manufacturer ID	196013

Specifications may be subject to change without notice
