Product Model

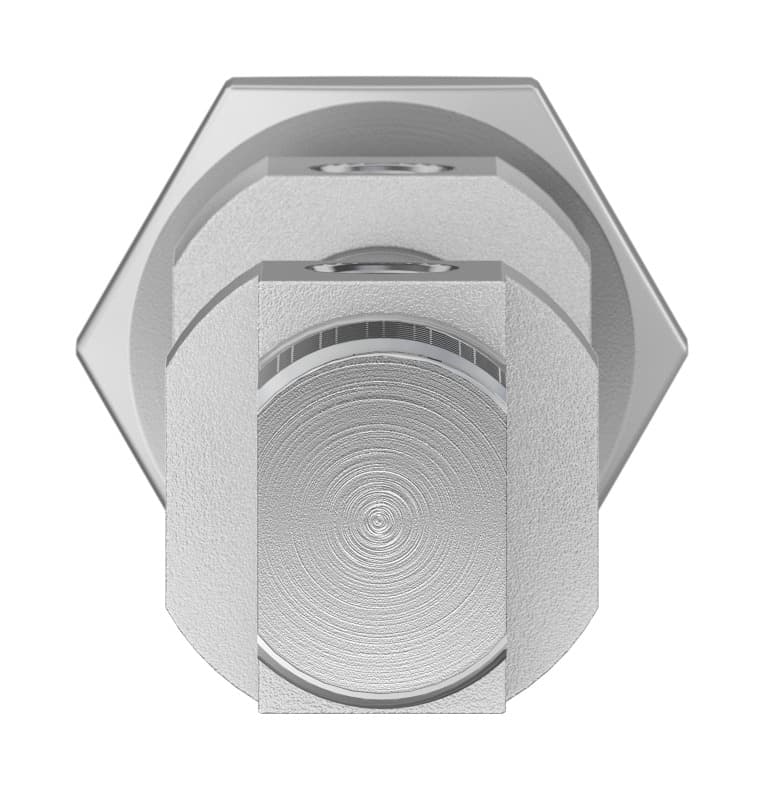

dsnu-8-15-p-a
Selling Points
- 1The Festo DSNU-8-15-P-A pneumatic cylinder offers a 15mm stroke and 8mm piston diameter, ensuring precise and reliable operation in various automation tasks.
- 2Equipped with elastic cushioning rings at both ends, this cylinder provides smooth operation and reduces wear and tear, extending its lifespan.
- 3The DSNU-8-15-P-A cylinder offers optional mounting positions, allowing for flexible integration into different automation systems.
- 4Conforming to CETOP RP 52 P and ISO 6432 standards, this cylinder ensures compatibility with a wide range of industrial applications.
- 5Designed with moderate corrosion resistance (CRC 2) and meeting Class 6 cleanroom standards according to ISO 14644-1, this cylinder is suitable for use in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 15mm | Piston diameter | 8 mm |
Piston rod thread | M4 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 1.5bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.03J |
Theoretical force at 6 bar, retracting | 22.6N | Additional moving mass per 10?mm stroke | 1g |
Basic weight with 0?mm stroke | 34.6g | Type of mounting | With accessories |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Plain anodized | Seals material | NBR TPE-U(PU) |
Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 1908247 |
Specifications may be subject to change without notice
