Product Model

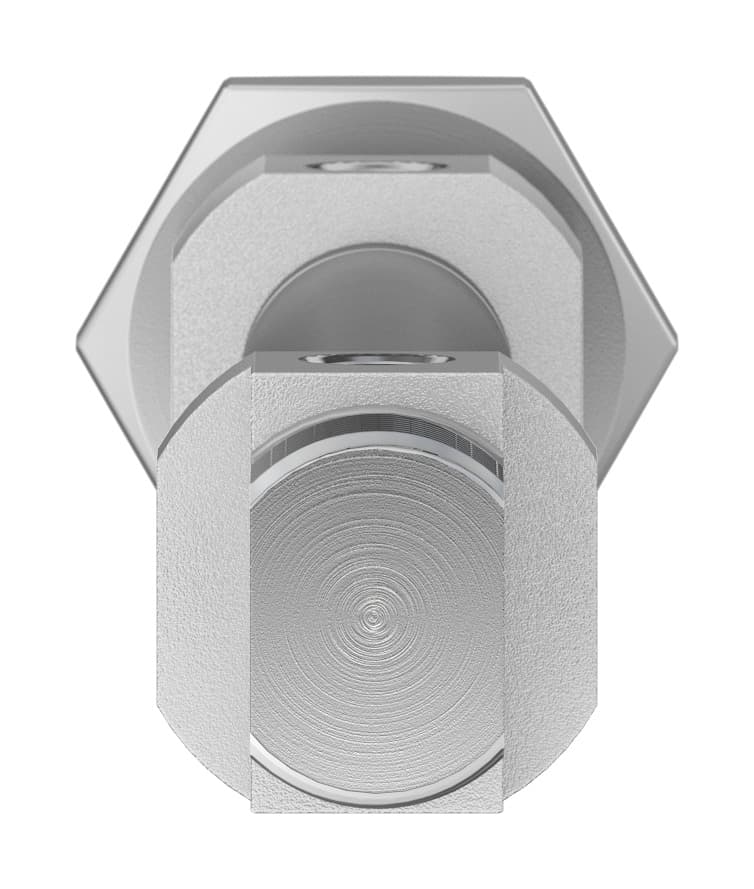

dsnu-8-60-p-a

Selling Points
- 1The DSNU-8-60-P-A pneumatic cylinder by Festo features a stroke of 60 mm and a piston diameter of 8 mm, making it ideal for compact automation systems.
- 2Equipped with elastic cushioning rings/plates at both ends, this cylinder ensures smooth operation and reduces wear and tear, extending its lifespan.
- 3Conforming to the CETOP RP 52 P and ISO 6432 standards, the DSNU-8-60-P-A cylinder offers reliable performance and compatibility with various industrial setups.
- 4The cylinder operates under a pressure range of 1.5 to 10 bar, allowing it to handle diverse industrial tasks with precision and efficiency.
- 5Designed for double-acting operation, the DSNU-8-60-P-A cylinder supports both forward and return strokes, enhancing its versatility in automation applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Stroke | 60mm | Piston diameter | 8 mm |
Piston rod thread | M4 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 1.5bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.03J |
Theoretical force at 6 bar, retracting | 22.6N | Theoretical force at 6 bar, advancing | 30.2N |
Additional moving mass per 10?mm stroke | 1g | Basic weight with 0?mm stroke | 34.6g |
Type of mounting | With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Plain anodized |
Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 1908250 |
Specifications may be subject to change without notice
