Product Model
dsrl-10-180-p-fw
Selling Points

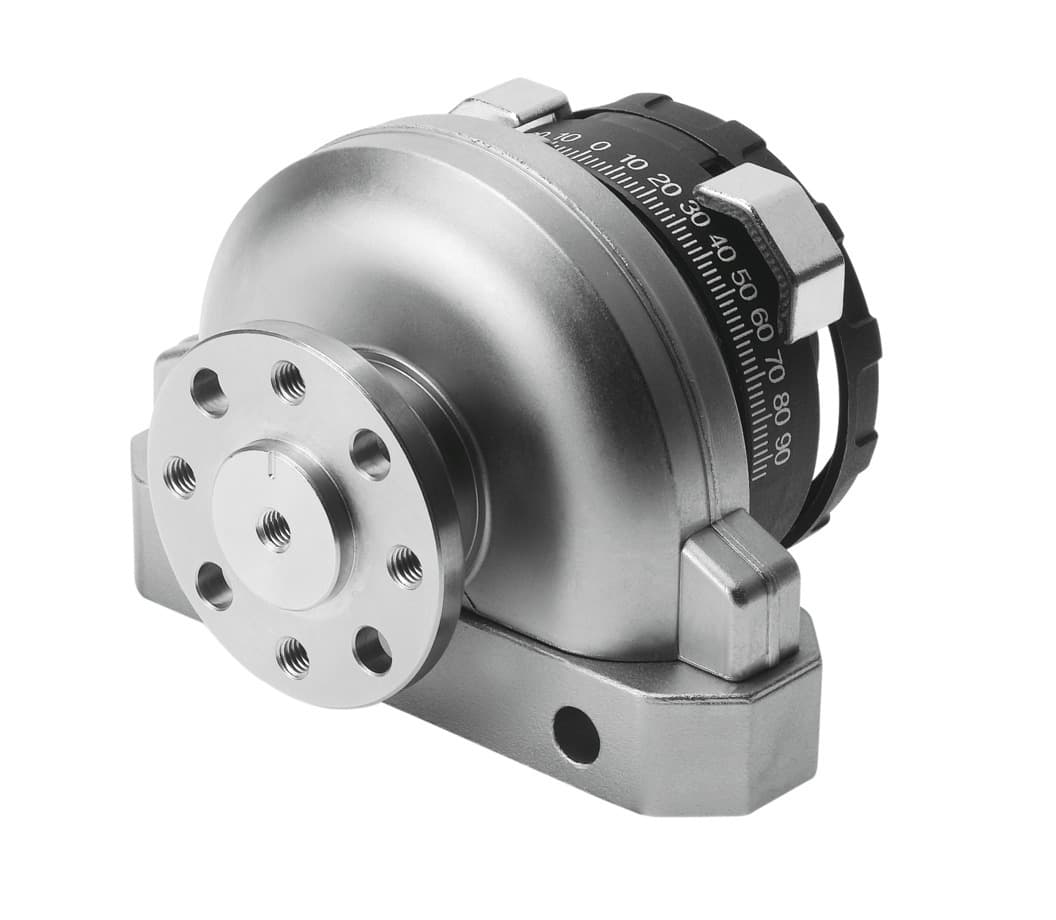

- 1The DSRL-10-180-P-FW semi-rotary drive features an adjustable swivel angle of 0 to 180 degrees, providing flexibility in various industrial applications.
- 2Equipped with elastic cushioning rings/plates at both ends, this drive ensures smooth operation and reduces impact forces, enhancing overall system reliability.
- 3Designed for double-acting operation, the DSRL-10-180-P-FW can handle both forward and reverse movements, making it versatile for different tasks.
- 4Operating within a pressure range of 2.5 to 8 bar, this semi-rotary drive is compatible with compressed air systems as per ISO 8573-1:2010 standards.
- 5The drive shaft is made of nickel-plated steel, ensuring durability and resistance to corrosion, while NBR seals provide reliable sealing performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 10 | Cushioning angle | 2.4deg |
Adjustment range of swivel angle | 0deg 180deg | Swivel angle | 0deg 180deg |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Rotary vane |
Position sensing | None | Symbol | 00991265 |
Operating pressure | 2.5bar 8bar | Max. swivel frequency at 6?bar | 3Hz |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -10°C 60°C | Theoretical torque at 6 bar | 0.5Nm |
Product weight | 100g | Type of mounting | With through-hole |
Pneumatic connection | M3 | Drive shaft material | Steel Nickel-plated |
Seals material | NBR | Manufacturer ID | 33296 |
