Product Model

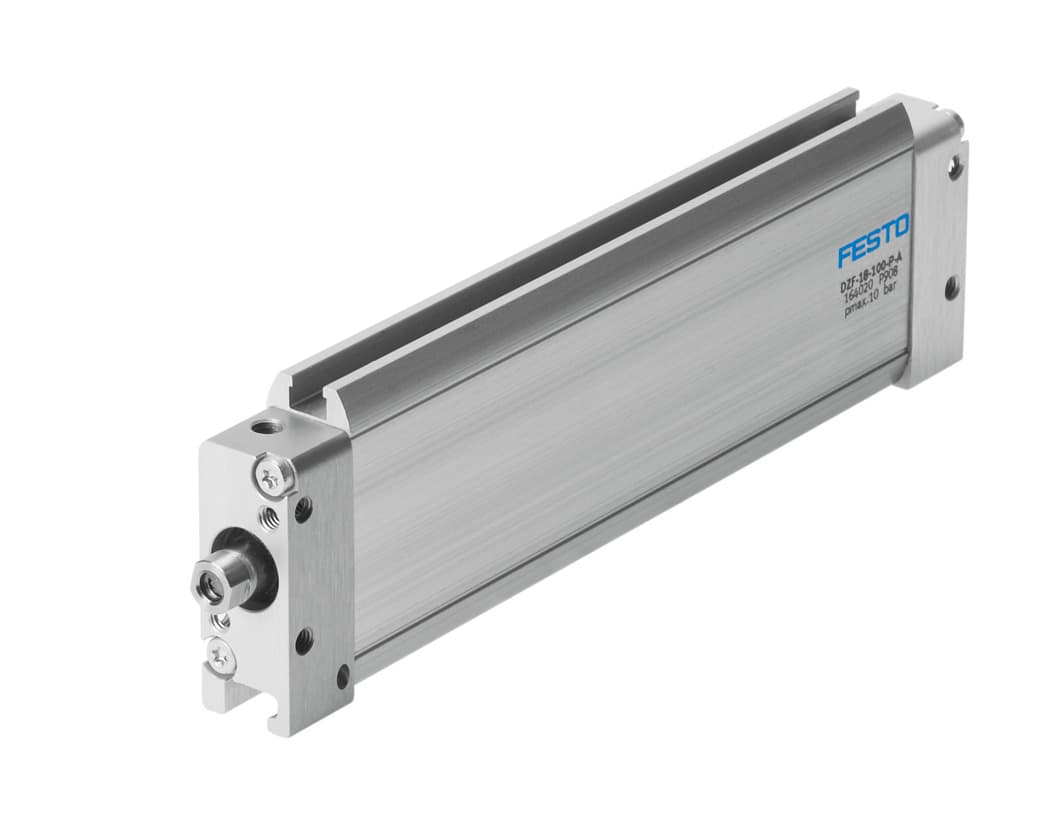

dzf-11/16"-1"-p-a
Selling Points
- 1The Festo DZF-11/16"-1"-P-A is a compact cylinder, perfect for space-constrained industrial applications. Its small size makes it easy to integrate into various automation systems.
- 2This cylinder operates in both directions, allowing for efficient and reliable movement in your industrial processes. Ideal for applications requiring precise control.
- 3The DZF series adheres to ISO standards, ensuring compatibility with a wide range of pneumatic systems. This makes it easy to integrate into existing setups.
- 4The cylinder operates within a pressure range of 14.5 ~ 145 PSI (1 ~ 10 bar), providing flexibility in various industrial environments.
- 5The Festo DZF series offers extensive mounting options, including male and female rod threads, making it adaptable to different application requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 25.4mm | Piston diameter | 11/16" |
Max. angle of rotation of the piston rod +/- | 1.2deg | Cushioning | Elastic cushioning rings/pads at both ends |
Mode of operation | Double-acting | Symbol | 00991217 |
Protection against torsion/guide | Oval piston | Operating pressure | 1bar 10bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 123N |
Theoretical force at 6 bar, advancing | 153N | Moving mass at 0?mm stroke | 24g |
Additional moving mass per 10?mm stroke | 2.3g | Additional weight per 10?mm stroke | 4g |
Basic weight with 0?mm stroke | 107g | Pneumatic connection | 10-32 UNF-2B |
Cover material | Aluminum | Seals material | FPM TPE-U(PU) |
Housing material | Wrought aluminum alloy | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 194146 |
Specifications may be subject to change without notice
