Product Model
dzf-11/16"- -a-p-a-s20
Selling Points

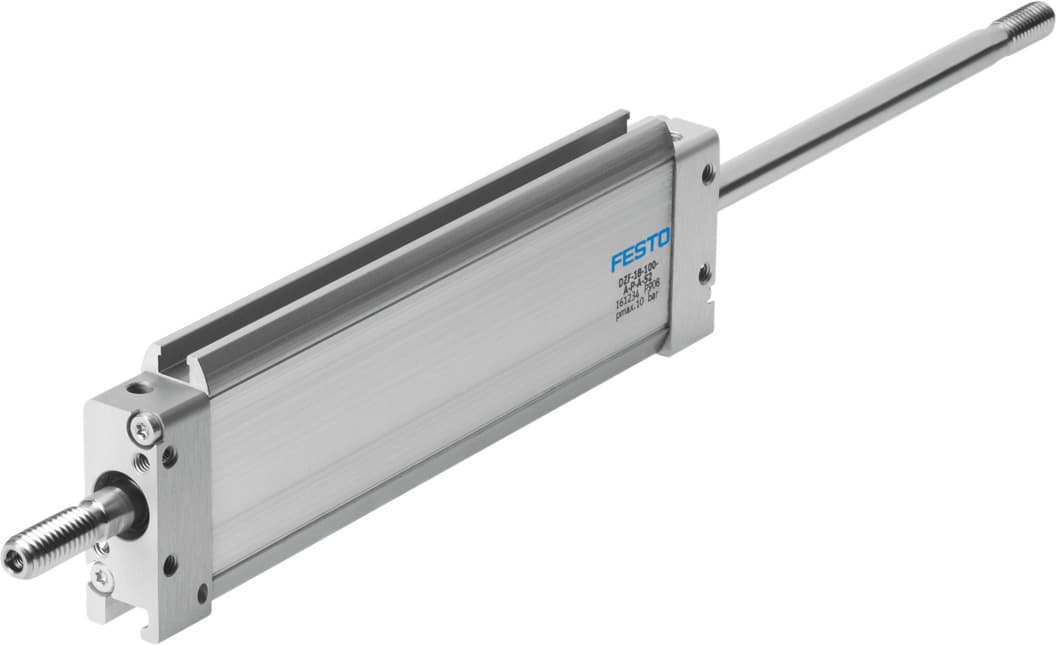

- 1The Festo DZF-11/16"-A-P-A is a high-precision pneumatic cylinder designed for precise positioning and reliable operation, making it ideal for automation and industrial applications.
- 2This cylinder features a piston diameter of 11/16" and a stroke length of 1", ensuring accurate control and movement in various mechanical systems.
- 3Equipped with elastic cushioning rings at both ends, the DZF-11/16"-A-P-A provides smooth operation and reduces wear on the cylinder, extending its lifespan.
- 4The cylinder is designed for double-acting operation, allowing for both forward and backward motion, which enhances its versatility in different applications.
- 5With a maximum operating pressure of 1 MPa and an ambient temperature range of -20 °C to 80 °C, the DZF-11/16"-A-P-A can operate efficiently in a variety of environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 1.016mm 203.2mm | Piston diameter | 11/16" |
Max. angle of rotation of the piston rod +/- | 1.2deg | Cushioning | Elastic cushioning rings/pads at both ends |
Mode of operation | Double-acting | Symbol | 00991218 |
Protection against torsion/guide | Oval piston | Operating pressure | 1bar 10bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 123N |
Theoretical force at 6 bar, advancing | 123N | Pneumatic connection | 10-32 UNF-2B |
Cover material | Aluminum | Seals material | FPM TPE-U(PU) |
Housing material | Wrought aluminum alloy | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 194133 |
Specifications may be subject to change without notice
