Product Model
dzf-1 1/4"-6"-a-p-a
Selling Points

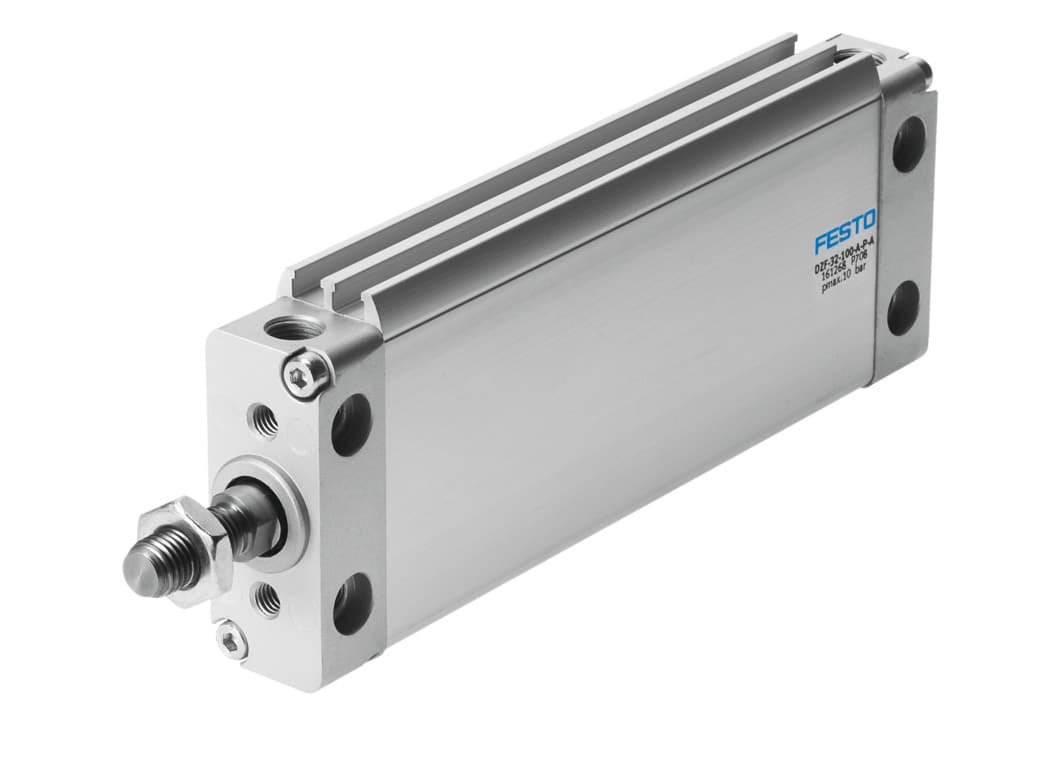

- 1The Festo DZF-1 1/4"-6"-A-P-A features a stroke length of 6 inches, making it suitable for a wide range of industrial applications.
- 2This cylinder boasts a piston diameter of 1.25 inches, ensuring precise control and efficient operation.
- 3Equipped with elastic cushioning rings at both ends, the DZF-1 1/4"-6"-A-P-A provides smooth and reliable motion.
- 4The cylinder operates at pressures between 1 and 10 bar, accommodating various industrial requirements.
- 5Constructed from high-quality materials, including wrought aluminum alloy and high-alloy stainless steel, ensuring durability and resistance to corrosion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 152.4mm | Piston diameter | 1 1/4" |
Max. angle of rotation of the piston rod +/- | 0.8deg | Cushioning | Elastic cushioning rings/pads at both ends |
Mode of operation | Double-acting | Symbol | 00991217 |
Protection against torsion/guide | Oval piston | Operating pressure | 1bar 10bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 415N |
Theoretical force at 6 bar, advancing | 483N | Moving mass at 0?mm stroke | 65g |
Additional moving mass per 10?mm stroke | 180g | Additional weight per 10?mm stroke | 9g |
Basic weight with 0?mm stroke | 272g | Pneumatic connection | 1/8 NPT |
Cover material | Aluminum | Seals material | FPM TPE-U(PU) |
Housing material | Wrought aluminum alloy | Piston rod material | High-alloy steel |
Manufacturer ID | 194189 |
Specifications may be subject to change without notice
