Product Model
dzf-12-125-p-a
Selling Points

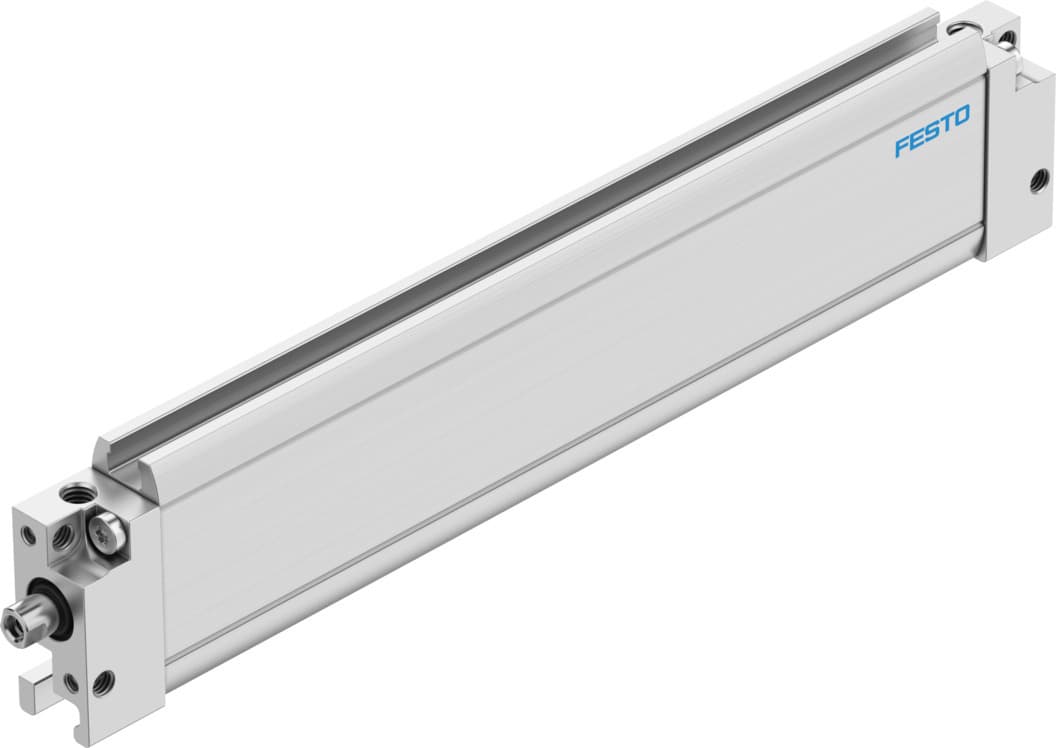

- 1The Festo DZF-12-125-P-A flat cylinder features a 125mm stroke and a 12mm equivalent diameter piston, making it suitable for a wide range of industrial applications.
- 2This double-acting flat cylinder offers elastic cushioning rings/plates at both ends, ensuring smooth operation and reducing wear and tear.
- 3With a maximum torsional backlash of ±2.5 degrees at the piston rod, the DZF-12-125-P-A provides precise control and stability in its movements.
- 4The cylinder operates within a temperature range of -20°C to 80°C and can be used with compressed air to ISO 8573-1:2010 [7:4:4], ensuring reliable performance in various environments.
- 5The Festo DZF-12-125-P-A is designed with high-alloy stainless steel piston rods and aluminum alloy covers, providing excellent durability and corrosion resistance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 125mm | Piston diameter | 12 mm Equivalent diameter |
Max. angle of rotation of the piston rod +/- | 2.5deg | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991217 | Protection against torsion/guide | Oval piston |
Operating pressure | 1.6bar 10bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Max. torque for protection against rotation | 0.1Nm | Theoretical force at 6 bar, retracting | 51N |
Theoretical force at 6 bar, advancing | 68N | Moving mass at 0?mm stroke | 12g |
Additional moving mass per 10?mm stroke | 2g | Additional weight per 10?mm stroke | 9g |
Basic weight with 0?mm stroke | 96g | Type of mounting | Optionally: With internal thread With accessories |
Pneumatic connection | M5 | Cover material | Wrought aluminum alloy |
Seals material | NBR TPE-U(PU) | Housing material | Aluminum Smooth anodized |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 164009 |
Specifications may be subject to change without notice
