Festo DZF-1/2"-1/2"-A-P-A Pneumatic Cylinder

Selling Points

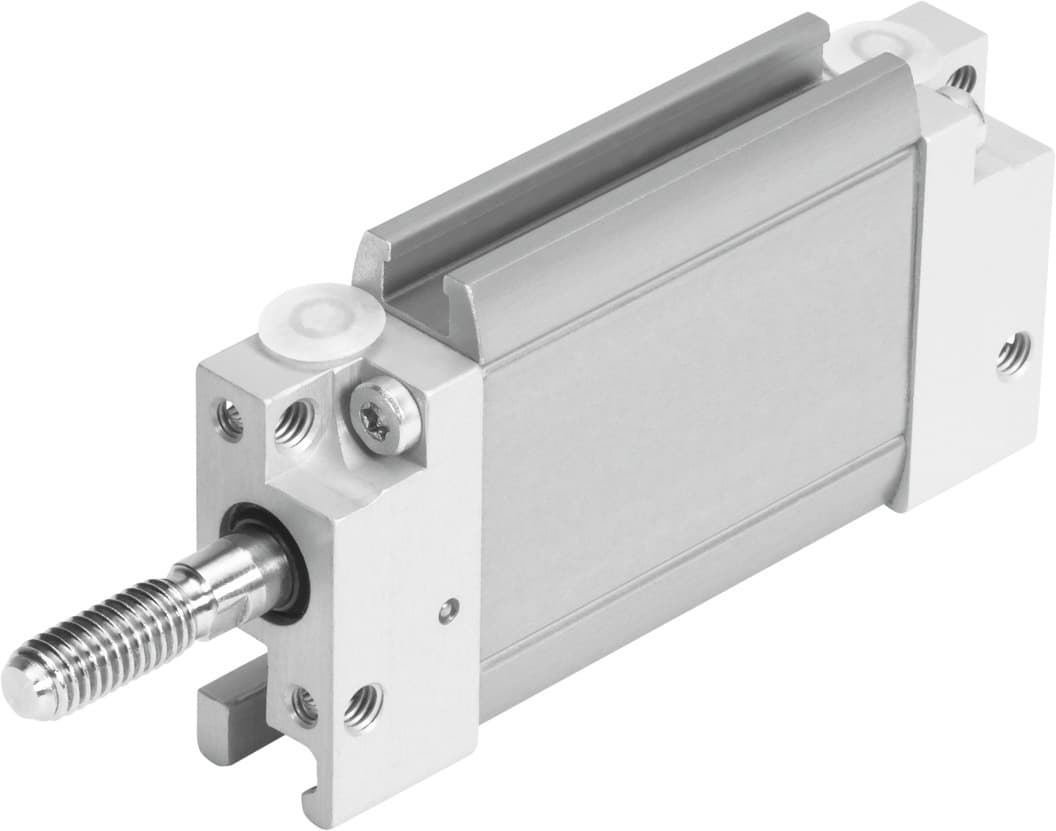

1The Festo DZF-1/2"-1/2"-A-P-A is a double-acting, non-rotating pneumatic cylinder designed for precise position sensing with elastic cushioning rings at both ends.
2This cylinder features a built-in magnet, ensuring accurate and reliable position sensing in various industrial applications.
3With a piston diameter of 2 1/2" and a stroke of 0.5", the DZF-1/2"-1/2"-A-P-A offers versatile performance in fluid power operations.
4The cylinder operates within a working pressure range of 1 to 10 bar, using compressed air in accordance with ISO8573-1:2010, and supports lubricated operation for extended use.
5Made from high-quality materials including wrought aluminum alloy for the housing and high alloy steel for the piston rod, this cylinder ensures durability and reliability in demanding environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	12.7mm	Piston diameter	1/2"
Max. angle of rotation of the piston rod +/-	2.5deg	Cushioning	Elastic cushioning rings/pads at both ends
Mode of operation	Double-acting	Symbol	00991217
Protection against torsion/guide	Oval piston	Operating pressure	1.6bar 10bar
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, retracting	51N
Theoretical force at 6 bar, advancing	68N	Moving mass at 0?mm stroke	12g
Additional moving mass per 10?mm stroke	360g	Additional weight per 10?mm stroke	2g
Basic weight with 0?mm stroke	96g	Pneumatic connection	10-32 UNF-2B
Cover material	Aluminum	Seals material	FPM TPE-U(PU)
Housing material	Wrought aluminum alloy	Piston rod material	High-alloy stainless steel
Manufacturer ID	194113
