Product Model
dzf-1/2"-1"-p-a

Selling Points

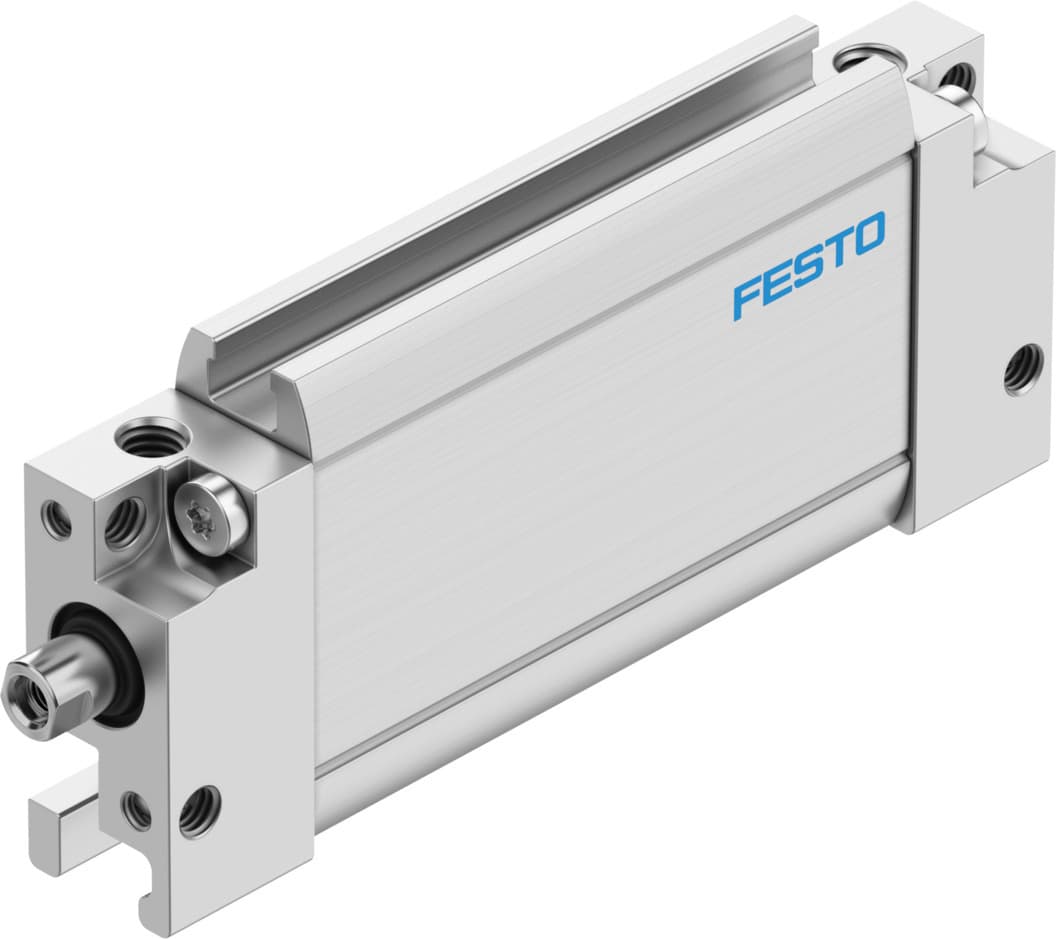

- 1The Festo DZF-1/2"-1"-P-A is a high-quality, double-acting flat cylinder designed for precise and efficient motion control in industrial automation applications.
- 2This cylinder features a piston diameter of 1/2" and a stroke length of 1", making it suitable for a wide range of tasks in manufacturing and process control.
- 3The DZF-1/2"-1"-P-A is sensor-ready, equipped with magnets for position sensing, ensuring accurate control and monitoring of the cylinder's movement.
- 4With a flexible cushion and robust construction, this cylinder provides reliable performance even in demanding industrial environments.
- 5Festo's DZF-1/2"-1"-P-A is part of a comprehensive product line that includes various accessories and mounting options, making it easy to integrate into existing systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Stroke | 25.4mm | Piston diameter | 1/2" |
Max. angle of rotation of the piston rod +/- | 2.5deg | Cushioning | Elastic cushioning rings/pads at both ends |
Mode of operation | Double-acting | Symbol | 00991217 |
Protection against torsion/guide | Oval piston | Operating pressure | 1.6bar 10bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 51N |
Theoretical force at 6 bar, advancing | 68N | Moving mass at 0?mm stroke | 12g |
Additional weight per 10?mm stroke | 2g | Basic weight with 0?mm stroke | 96g |
Pneumatic connection | 10-32 UNF-2B | Cover material | Aluminum |
Seals material | FPM TPE-U(PU) | Housing material | Wrought aluminum alloy |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 194123 |
Specifications may be subject to change without notice
