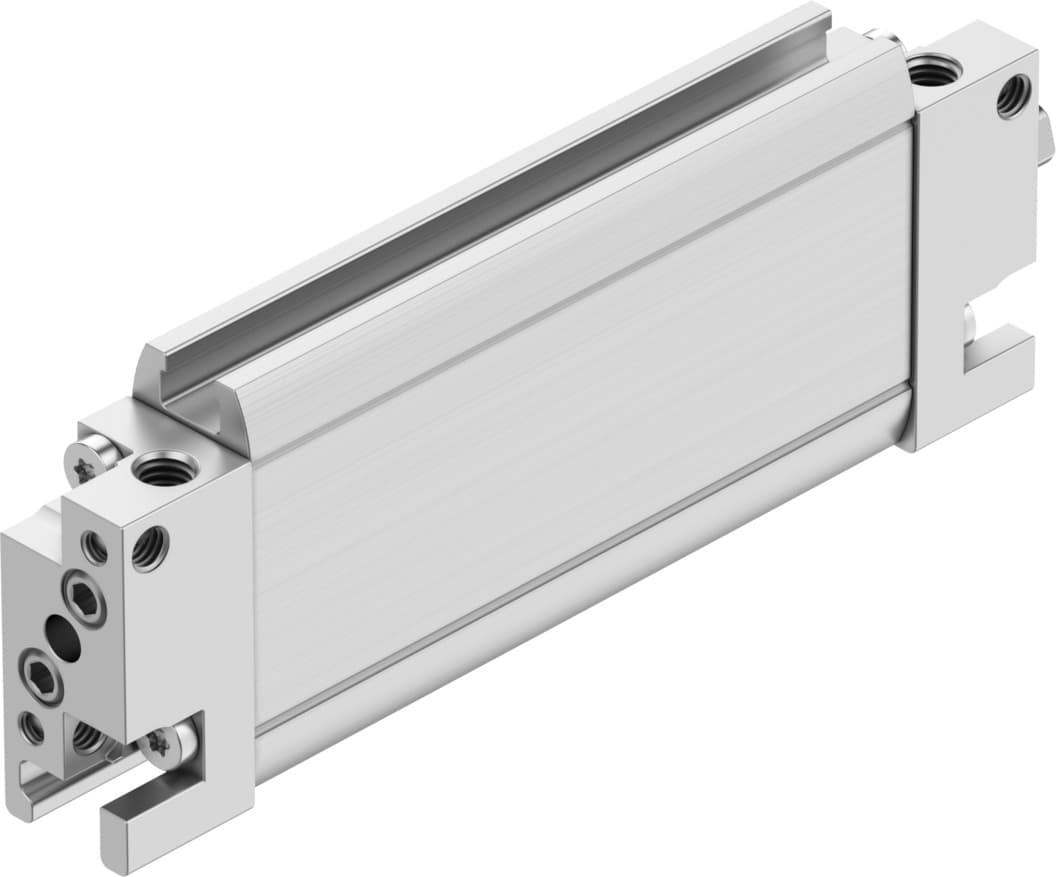

Product Model
dzf-1/2"-2"-p-a

Selling Points
- 1The Festo DZF-1/2"-2"-P-A features a robust, double-acting design that ensures reliable operation in various industrial settings.
- 2Equipped with elastic cushioning at both ends, this cylinder provides smooth motion and reduces wear and tear on the system.
- 3The integrated magnet allows for precise position sensing, enhancing the accuracy and control of your automation processes.
- 4With a compact design and versatile mounting options, the DZF-1/2"-2"-P-A is suitable for a wide range of applications in industrial automation.
- 5Capable of operating at pressures up to 14.5 bar, this cylinder ensures reliable performance in demanding industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Stroke | 50.8mm | Piston diameter | 1/2" |
Max. angle of rotation of the piston rod +/- | 2.5deg | Cushioning | Elastic cushioning rings/pads at both ends |
Mode of operation | Double-acting | Symbol | 00991217 |
Protection against torsion/guide | Oval piston | Operating pressure | 1.6bar 10bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 51N |
Theoretical force at 6 bar, advancing | 68N | Moving mass at 0?mm stroke | 12g |
Additional weight per 10?mm stroke | 2g | Basic weight with 0?mm stroke | 96g |
Pneumatic connection | 10-32 UNF-2B | Cover material | Aluminum |
Seals material | FPM TPE-U(PU) | Housing material | Wrought aluminum alloy |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 194125 |
Specifications may be subject to change without notice
