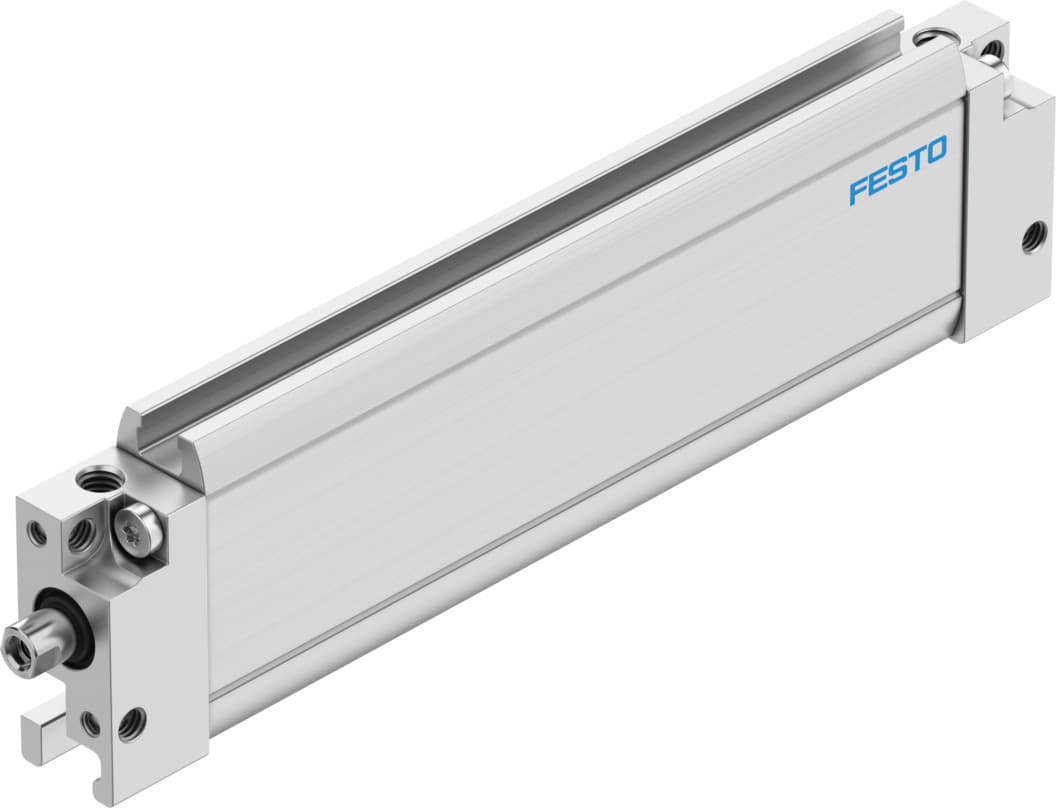

Festo DZF-1/2"-4"-P-A Pneumatic Cylinder - High-Quality Double-Acting Solution

Selling Points

1The Festo DZF-1/2"-4"-P-A pneumatic cylinder is designed with a non-rotating oval piston, ensuring precise and consistent motion in your industrial processes.
2Equipped with elastic cushioning at both ends, this cylinder provides smooth operation and reduces wear and tear, extending its lifespan.
3The DZF series includes a built-in magnet for position sensing, allowing for precise control and monitoring of the cylinder's movement.
4Available in a range of sizes, the DZF-1/2"-4"-P-A cylinder offers versatility and flexibility to meet various application requirements.
5Constructed from high-quality materials, this Festo cylinder ensures durability and reliability in demanding industrial environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	101.6mm	Piston diameter	1/2"
Max. angle of rotation of the piston rod +/-	2.5deg	Cushioning	Elastic cushioning rings/pads at both ends
Mode of operation	Double-acting	Symbol	00991217
Protection against torsion/guide	Oval piston	Operating pressure	1.6bar 10bar
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, retracting	51N
Theoretical force at 6 bar, advancing	68N	Moving mass at 0?mm stroke	12g
Additional moving mass per 10?mm stroke	450g	Additional weight per 10?mm stroke	2g
Basic weight with 0?mm stroke	96g	Pneumatic connection	10-32 UNF-2B
Cover material	Aluminum	Seals material	FPM TPE-U(PU)
Housing material	Wrought aluminum alloy	Piston rod material	High-alloy stainless steel
Manufacturer ID	194127
