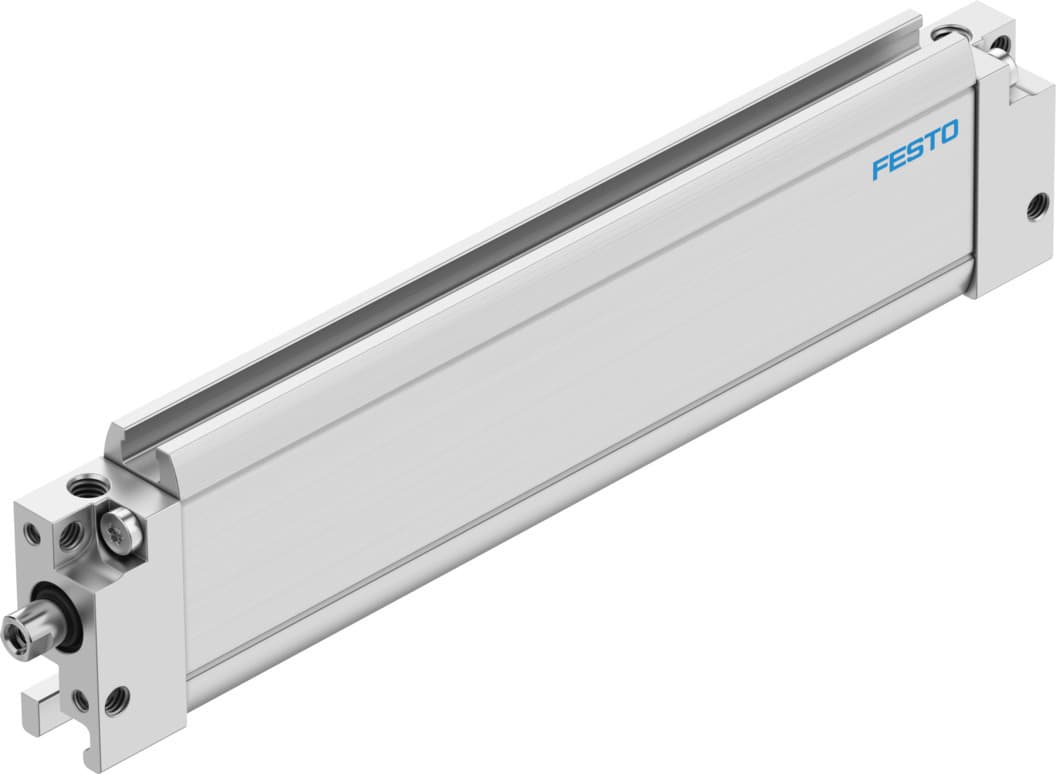

Festo DZF-1/2"-5"-P-A Flat Cylinder Specifications

Selling Points

1The Festo DZF-1/2"-5"-P-A flat cylinder features a piston diameter of 1/2" and a stroke length of 5 inches, making it suitable for a variety of precision applications.
2This cylinder is designed with a double-acting mechanism, allowing for both extension and retraction, enhancing its versatility in various industrial settings.
3The DZF-1/2"-5"-P-A is equipped with a female rod thread, providing a secure and reliable connection point for your system.
4The cylinder is sensor-ready, allowing for easy integration with proximity sensors for position sensing and control.
5The flat cylinder design ensures compactness and ease of mounting, making it ideal for applications where space is limited.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	127mm	Piston diameter	1/2"
Max. angle of rotation of the piston rod +/-	2.5deg	Cushioning	Elastic cushioning rings/pads at both ends
Mode of operation	Double-acting	Symbol	00991217
Protection against torsion/guide	Oval piston	Operating pressure	1.6bar 10bar
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, retracting	51N
Theoretical force at 6 bar, advancing	68N	Moving mass at 0?mm stroke	12g
Additional moving mass per 10?mm stroke	180g	Additional weight per 10?mm stroke	2g
Basic weight with 0?mm stroke	96g	Pneumatic connection	10-32 UNF-2B
Cover material	Aluminum	Seals material	FPM TPE-U(PU)
Housing material	Wrought aluminum alloy	Piston rod material	High-alloy stainless steel
Manufacturer ID	194128

Specifications may be subject to change without notice
