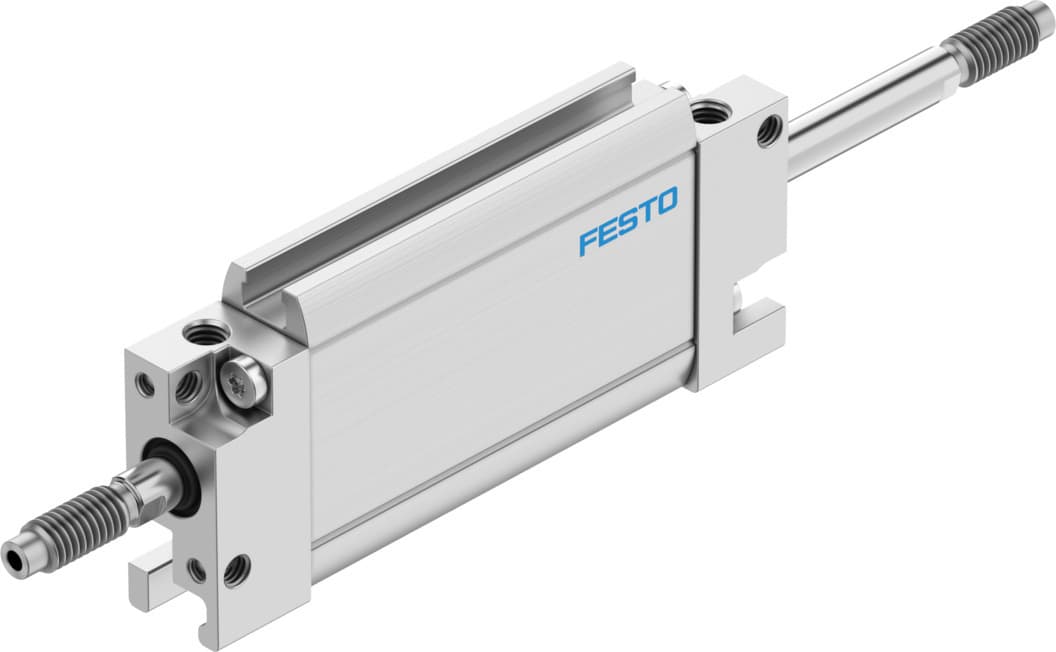

Product Model
dzf-12- -a-p-a-s20
Selling Points
- 1The Festo DZF-12 series offers precise control with a compact design, making it suitable for a wide range of industrial applications.
- 2Equipped with elastic cushioning rings/plates at both ends, these cylinders provide smooth operation and reduce wear and tear.
- 3Available in various stroke lengths (e.g., 25 mm, 40 mm, 50 mm, and 80 mm), the DZF-12 series caters to different operational needs.
- 4Built with robust materials, these cylinders ensure durability and long-lasting performance in demanding environments.
- 5Compatible with proximity switches for position detection, enhancing control and accuracy in automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 1mm 200mm | Piston diameter | 12 mm Equivalent diameter |
Max. angle of rotation of the piston rod +/- | 2.5deg | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991218 | Variants | Through, hollow piston rod |
Protection against torsion/guide | Oval piston | Operating pressure | 1.6bar 10bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Max. torque for protection against rotation | 0.1Nm |
Theoretical force at 6 bar, retracting | 51N | Theoretical force at 6 bar, advancing | 51N |
Moving mass at 0?mm stroke | 12g | Additional moving mass per 10?mm stroke | 2g |
Additional weight per 10?mm stroke | 9g | Basic weight with 0?mm stroke | 96g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | M5 |
Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
Housing material | Aluminum Smooth anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 161222 |
Specifications may be subject to change without notice
