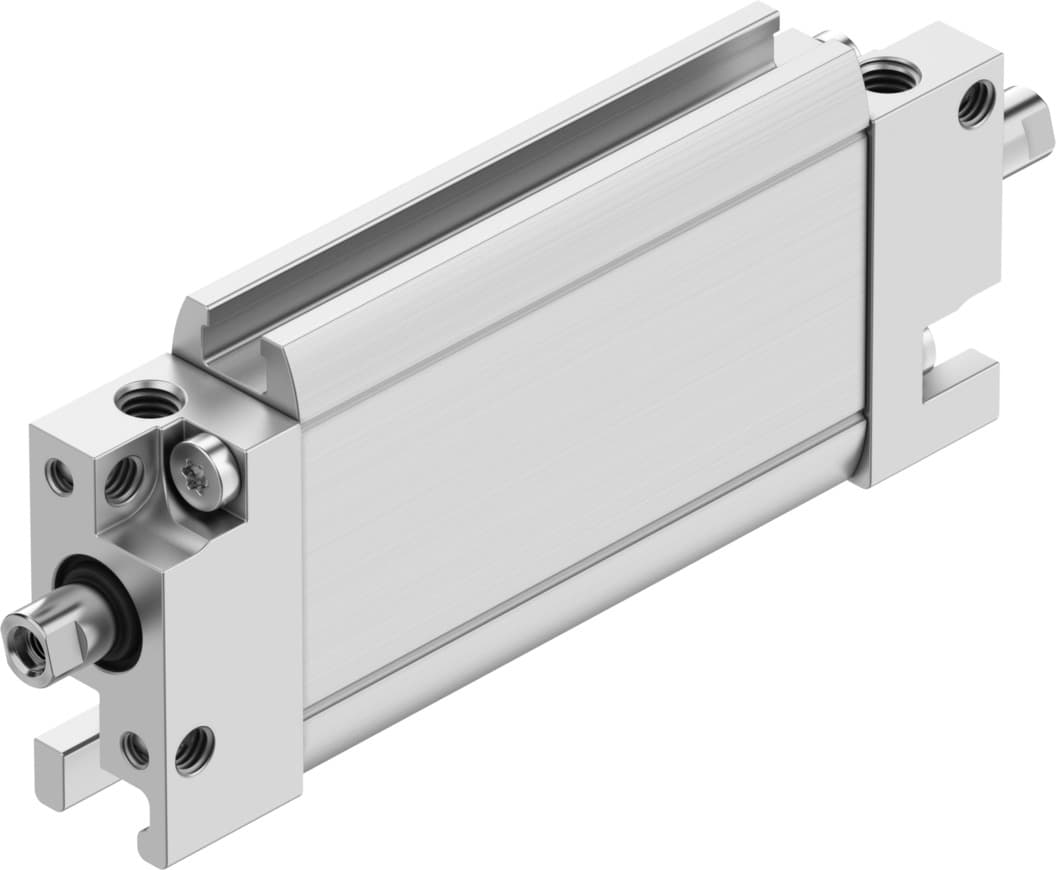

Product Model
dzf-12- -p-a-s2
Selling Points
- 1The Festo DZF-12 series offers a compact design with high precision, making it suitable for a variety of industrial applications.
- 2Equipped with elastic cushioning rings, these cylinders provide smooth operation and reduce wear and tear.
- 3Available in various stroke lengths (25 mm, 40 mm, 50 mm, and 80 mm), the DZF-12 series caters to different operational needs.
- 4The piston rod features a maximum angle of rotation of +/-2.5 degrees, ensuring precise control and movement.
- 5With a torsional backlash of +/-2.5 degrees, these cylinders maintain consistent performance and accuracy in their operations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 1mm 200mm | Piston diameter | 12 mm Equivalent diameter |
Max. angle of rotation of the piston rod +/- | 2.5deg | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991219 | Variants | Through piston rod |
Protection against torsion/guide | Oval piston | Operating pressure | 1.6bar 10bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Max. torque for protection against rotation | 0.1Nm |
Theoretical force at 6 bar, retracting | 51N | Theoretical force at 6 bar, advancing | 51N |
Moving mass at 0?mm stroke | 12g | Additional moving mass per 10?mm stroke | 2g |
Additional weight per 10?mm stroke | 9g | Basic weight with 0?mm stroke | 96g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | M5 |
Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
Housing material | Aluminum Smooth anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 164001 |
Specifications may be subject to change without notice
