Product Model
dzf-1 5/8"-1"-p-a
Selling Points

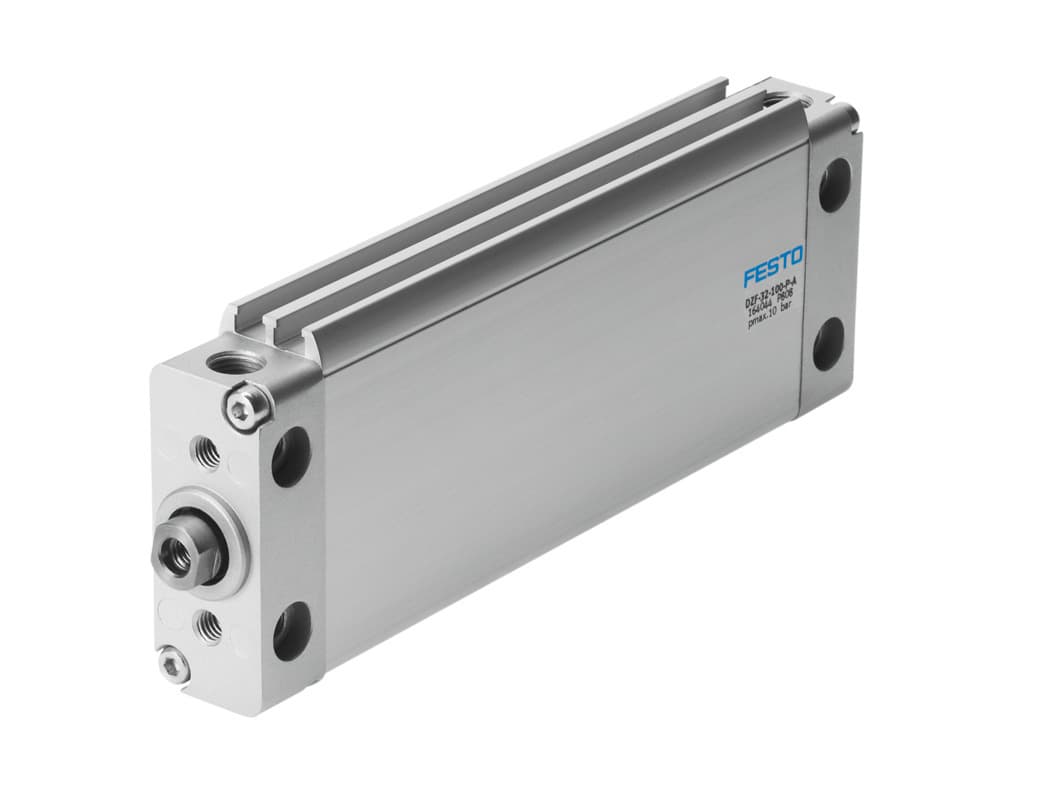

- 1The Festo DZF-1 5/8"-1"-P-A flat cylinder is designed for double-acting operations, ensuring reliable performance in diverse industrial settings.
- 2This cylinder features a piston diameter of 1 5/8" and a stroke length of 1", making it versatile for various pneumatic applications.
- 3The DZF-1 5/8"-1"-P-A cylinder includes elastic cushioning rings/plates at both ends, providing enhanced cushioning and reducing wear.
- 4With a maximum angular deflection of 0.6 degrees, this cylinder ensures precise positioning and control in your machinery.
- 5The Festo DZF-1 5/8"-1"-P-A cylinder operates within a temperature range of -20°C to 80°C, making it suitable for a wide range of environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 25.4mm | Piston diameter | 1 5/8" |
Max. angle of rotation of the piston rod +/- | 0.6deg | Cushioning | Elastic cushioning rings/pads at both ends |
Mode of operation | Double-acting | Symbol | 00991217 |
Protection against torsion/guide | Oval piston | Operating pressure | 1bar 10bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 633N |
Theoretical force at 6 bar, advancing | 754N | Moving mass at 0?mm stroke | 120g |
Additional moving mass per 10?mm stroke | 9g | Additional weight per 10?mm stroke | 16g |
Basic weight with 0?mm stroke | 480g | Pneumatic connection | 1/8 NPT |
Cover material | Aluminum | Seals material | FPM TPE-U(PU) |
Housing material | Wrought aluminum alloy | Piston rod material | High-alloy steel |
Manufacturer ID | 194221 |
Specifications may be subject to change without notice
