Product Model
dzf-1"-5"-p-a
Selling Points

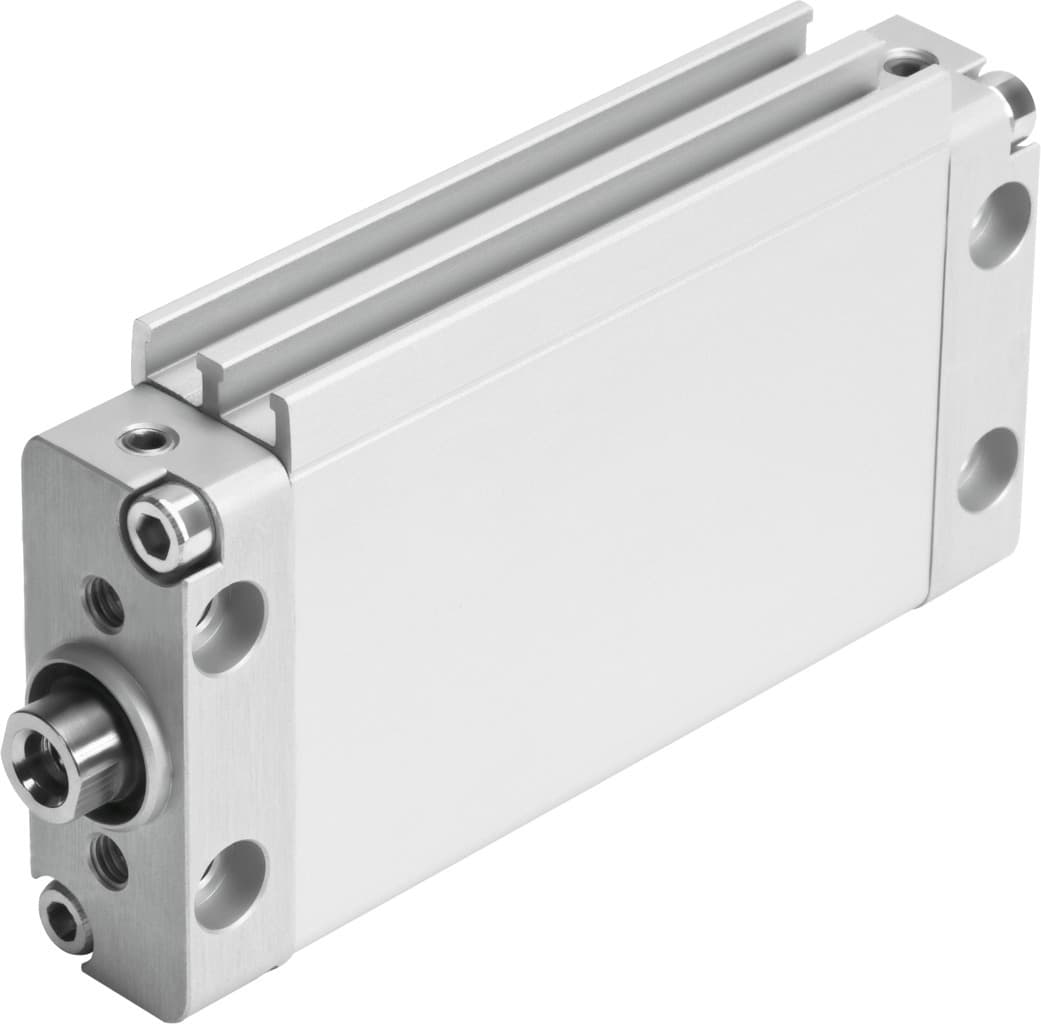

- 1The Festo DZF-1"-5"-P-A features a piston diameter of 1" and a stroke length of 5 inches, making it ideal for applications requiring precise movement and control.
- 2This double-acting flat cylinder offers elastic cushioning rings/plates at both ends, ensuring smooth operation and reducing wear on the piston rod.
- 3With a torsional backlash at the piston rod of +/- 1 degree, the DZF-1"-5"-P-A provides stable and consistent performance in various operating conditions.
- 4The cylinder operates within a pressure range of 0.1 MPa to 1 MPa (1 bar to 10 bar) and is designed for use with compressed air to ISO 8573-1:2010 [7:4:4].
- 5The DZF-1"-5"-P-A is constructed with high-quality materials, including an aluminium cover, FPM and TPE-U(PU) seals, and a high-alloy stainless steel piston rod, ensuring durability and resistance to corrosion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 127mm | Piston diameter | 1" |
Max. angle of rotation of the piston rod +/- | 1deg | Cushioning | Elastic cushioning rings/pads at both ends |
Mode of operation | Double-acting | Symbol | 00991217 |
Protection against torsion/guide | Oval piston | Operating pressure | 1bar 10bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 247N |
Theoretical force at 6 bar, advancing | 295N | Moving mass at 0?mm stroke | 40g |
Additional moving mass per 10?mm stroke | 13g | Additional weight per 10?mm stroke | 6g |
Basic weight with 0?mm stroke | 168g | Pneumatic connection | 10-32 UNF-2B |
Cover material | Aluminum | Seals material | FPM TPE-U(PU) |
Housing material | Wrought aluminum alloy | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 194174 |
Specifications may be subject to change without notice
