Product Model
dzf-2"- -p-a-s2
Selling Points

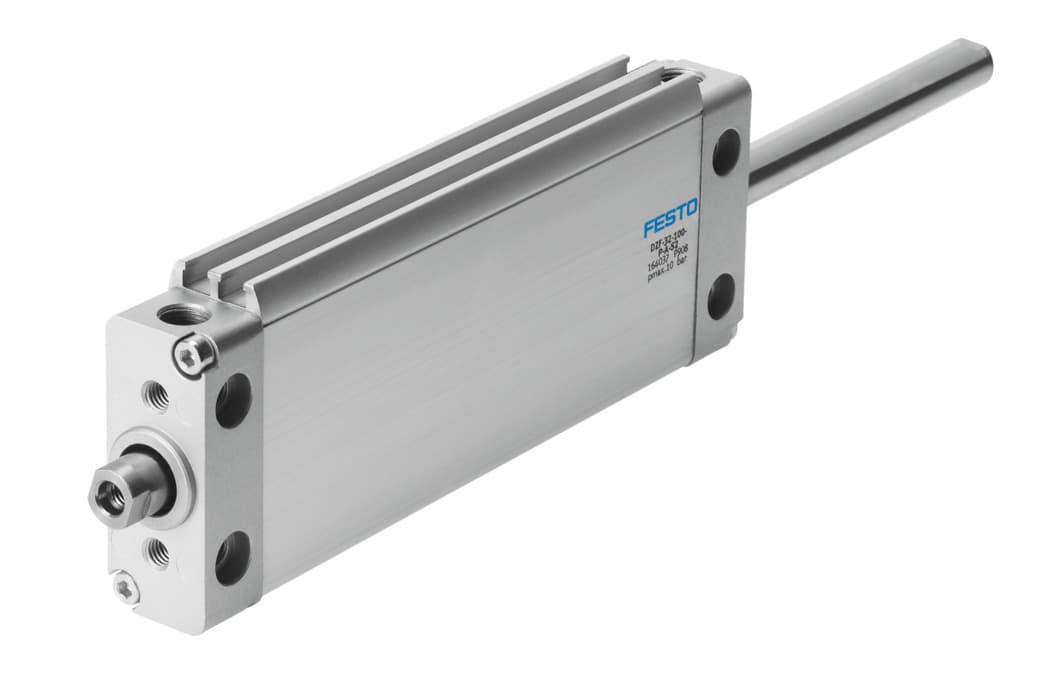

- 1The Festo DZF-2 1/2"-3"-A-P-A flat cylinder operates in a double-acting mode, allowing compressed air to be applied for advancing and retracting the piston rod in a linear motion.
- 2Equipped with flexible cushioning rings/plates at both ends, this cylinder effectively absorbs energy in the end positions, reducing noise and vibration.
- 3The cylinder features a corrosion resistance classification of CRC 2, ensuring durability in various industrial environments.
- 4The Festo DZF-2 1/2"-3"-A-P-A operates within a wide temperature range of -20°C to 80°C, making it suitable for diverse industrial applications.
- 5With a stroke length of 3 inches and a piston diameter of 2 1/2 inches, this flat cylinder is designed for compact installations and versatile mounting options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 1.016mm 330.2mm | Piston diameter | 2" |
Max. angle of rotation of the piston rod +/- | 0.5deg | Cushioning | Elastic cushioning rings/pads at both ends |
Mode of operation | Double-acting | Symbol | 00991219 |
Protection against torsion/guide | Oval piston | Operating pressure | 1bar 10bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 990N |
Theoretical force at 6 bar, advancing | 990N | Pneumatic connection | 1/4 NPT |
Cover material | Aluminum | Seals material | FPM TPE-U(PU) |
Housing material | Wrought aluminum alloy | Piston rod material | High-alloy steel |
Manufacturer ID | 194235 |
Specifications may be subject to change without notice
