Product Model
dzh-16-125-ppv-a
Selling Points

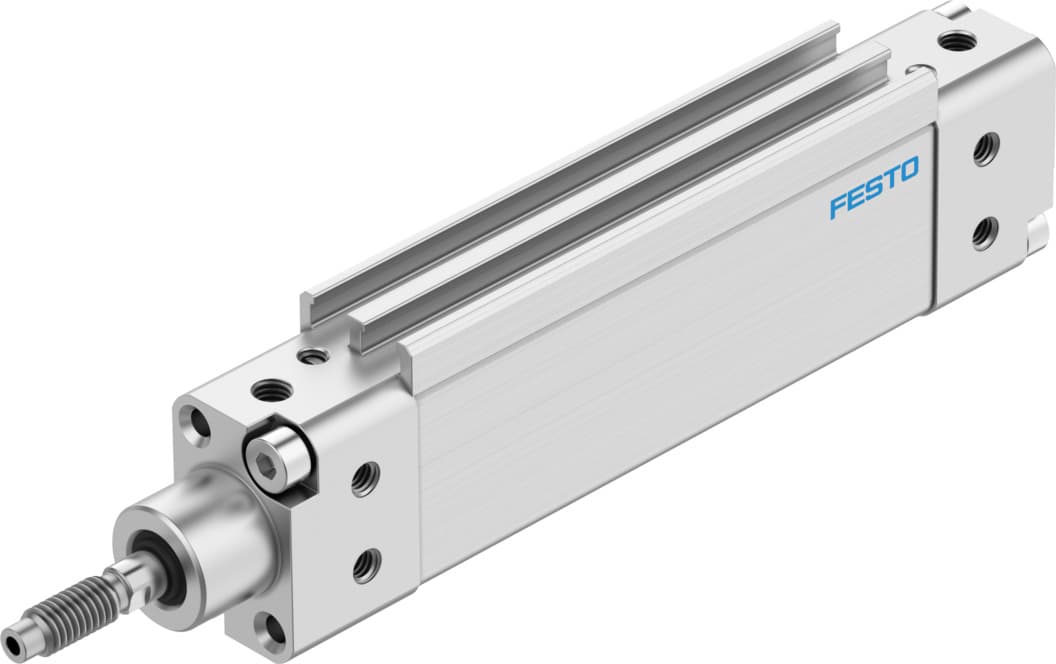

- 1The Festo DZH-16-125-PPV-A features a 16mm piston diameter and a 125mm stroke, making it suitable for a wide range of industrial applications.
- 2This flat pneumatic cylinder offers adjustable pneumatic cushioning on both sides, ensuring smooth operation and reducing vibrations.
- 3With a maximum operating pressure of 10 bar and an ambient temperature range of -20°C to 80°C, the DZH-16-125-PPV-A is versatile and reliable.
- 4The cylinder is constructed with high-alloy steel for the piston rod, aluminum for the housing and cover, and TPE-U(PU) for the seals, ensuring durability and corrosion resistance.
- 5The Festo DZH-16-125-PPV-A is designed for double-acting operation and includes features like position detection via proximity switch and anti-twist lock with an oval piston, enhancing safety and precision.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 125mm | Piston diameter | 16 mm Equivalent diameter |
Max. angle of rotation of the piston rod +/- | 3.1deg | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991235 | Protection against torsion/guide | Oval piston |
Operating pressure | 1bar 10bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
Cushioning length | 14mm | Max. torque for protection against rotation | 0.5Nm |
Theoretical force at 6 bar, retracting | 104N | Theoretical force at 6 bar, advancing | 121N |
Additional weight per 10?mm stroke | 11g | Basic weight with 0?mm stroke | 140g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Aluminum |
Seals material | TPE-U(PU) | Housing material | Aluminum |
Piston rod material | High-alloy steel | Manufacturer ID | 151150 |
Specifications may be subject to change without notice
