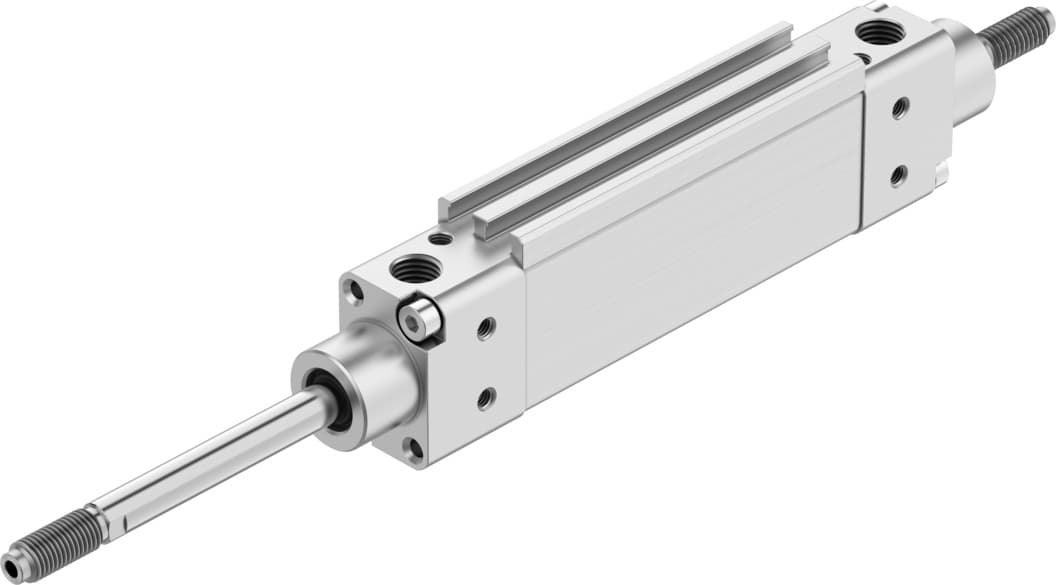

Product Model
dzh-20- -ppv-a-s20
Selling Points
- 1High Precision and Adjustable Cushioning: The DZH-20-PPV-A-S20 features pneumatic cushioning, adjustable at both ends, ensuring smooth operation and minimizing wear.
- 2Robust Construction: Made from high-alloy steel for the piston rod and aluminum for the housing, this cylinder offers excellent durability and resistance to corrosion.
- 3Versatile Stroke Range: Available with a stroke range of 1 mm to 320 mm, making it suitable for a variety of applications from short-stroke to long-stroke operations.
- 4Compact Design: Designed as a flat cylinder, it occupies minimal space, making it ideal for applications where space is limited.
- 5Compliant with Industry Standards: Meets ISO 8573-1:2010 standards for compressed air and is RoHS-compliant, ensuring it meets stringent industry requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 1mm 320mm | Piston diameter | 20 mm Equivalent diameter |
Max. angle of rotation of the piston rod +/- | 2.6deg | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991236 | Variants | Through, hollow piston rod |
Protection against torsion/guide | Oval piston | Operating pressure | 1bar 10bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -20°C 80°C | Cushioning length | 17mm |
Max. torque for protection against rotation | 0.6Nm | Theoretical force at 6 bar, retracting | 158N |
Theoretical force at 6 bar, advancing | 158N | Additional weight per 10?mm stroke | 15g |
Basic weight with 0?mm stroke | 230g | Type of mounting | Optionally: With internal thread With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Aluminum | Seals material | TPE-U(PU) |
Housing material | Aluminum | Piston rod material | High-alloy steel |
Manufacturer ID | 158380 |
Specifications may be subject to change without notice
