Product Model
dzh-20- -ppv-a-s6
Selling Points

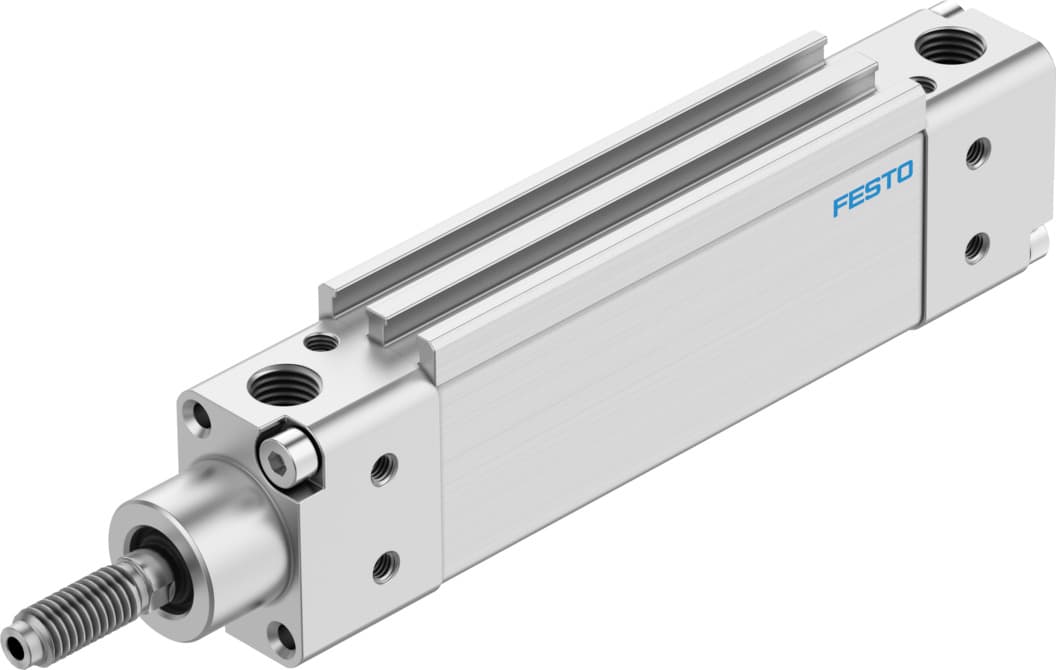

- 1The DZH-20-PPV-A-S6 pneumatic cylinder offers reliable and precise actuation, ideal for a wide range of industrial applications.
- 2Equipped with adjustable pneumatic cushioning at both ends, this cylinder ensures smooth operation and reduces wear and tear.
- 3Constructed with an aluminum housing and high-alloy steel piston rod, the DZH-20-PPV-A-S6 provides durability and resistance to corrosion.
- 4Available for mounting via female thread or with accessories, this cylinder offers flexibility in installation and integration.
- 5Meets ISO 8573-1:2010 standards for compressed air quality and is RoHS-compliant, ensuring compatibility with various industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 1mm 320mm | Piston diameter | 20 mm Equivalent diameter |
Max. angle of rotation of the piston rod +/- | 2.6deg | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991235 | Variants | Heat-resistant seals max. 120°C |
Protection against torsion/guide | Oval piston | Operating pressure | 1bar 10bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -20°C 120°C | Cushioning length | 17mm |
Max. torque for protection against rotation | 0.6Nm | Theoretical force at 6 bar, retracting | 158N |
Theoretical force at 6 bar, advancing | 188N | Additional weight per 10?mm stroke | 15g |
Basic weight with 0?mm stroke | 230g | Type of mounting | Optionally: With internal thread With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Aluminum | Seals material | TPE-U(PU) |
Housing material | Aluminum | Piston rod material | High-alloy steel |
Manufacturer ID | 151157 |
Specifications may be subject to change without notice
