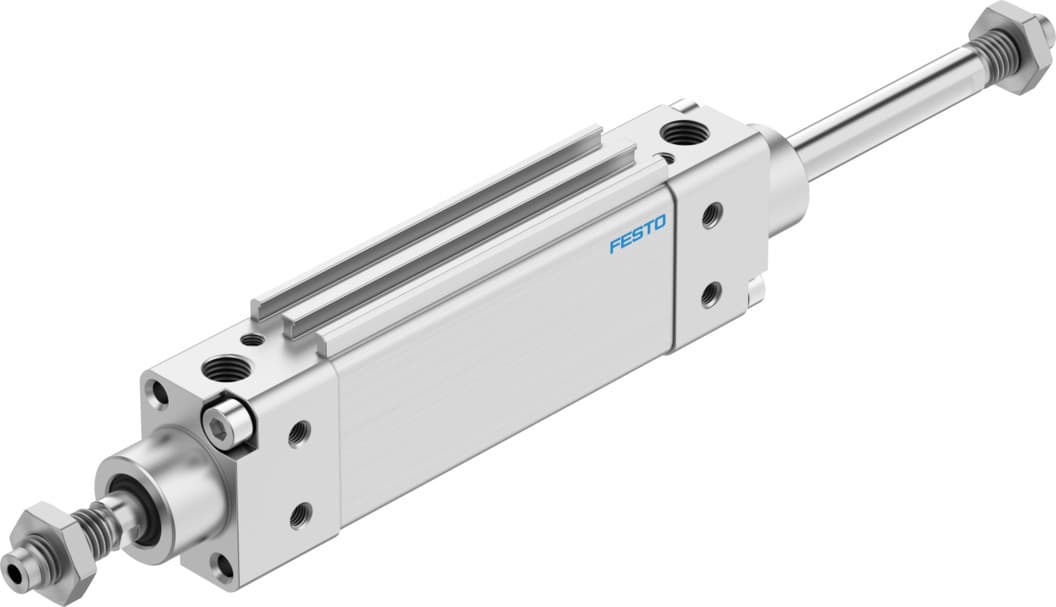

Product Model
dzh-25- -ppv-a-s20
Selling Points
- 1Adjustable Cushioning - The DZH-25-PPV-A-S20 features pneumatic cushioning that can be adjusted at both ends, ensuring smooth and controlled motion in your industrial applications.
- 2Robust Construction - Built with high-quality materials, including aluminum for the cover and high-alloy steel for the piston rod, this cylinder offers durability and reliability.
- 3Wide Operating Pressure Range - This flat cylinder operates effectively within a wide pressure range of 0.1 to 1 MPa (1 to 10 bar), making it versatile for various industrial settings.
- 4Position Detection Capability - Equipped with a proximity switch, the DZH-25-PPV-A-S20 allows for precise position detection, enhancing the accuracy of your operations.
- 5Corrosion Resistance - With a corrosion resistance class of CRC 2, this cylinder is designed to withstand moderate corrosion stress, ensuring long-term performance in challenging environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 1mm 500mm | Piston diameter | 25 mm Equivalent diameter |
Max. angle of rotation of the piston rod +/- | 2.4deg | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991236 | Variants | Through, hollow piston rod |
Protection against torsion/guide | Oval piston | Operating pressure | 1bar 10bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -20°C 80°C | Cushioning length | 17mm |
Max. torque for protection against rotation | 0.8Nm | Theoretical force at 6 bar, retracting | 247N |
Theoretical force at 6 bar, advancing | 247N | Additional weight per 10?mm stroke | 21g |
Basic weight with 0?mm stroke | 330g | Type of mounting | Optionally: With internal thread With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Aluminum | Seals material | TPE-U(PU) |
Housing material | Aluminum | Piston rod material | High-alloy steel |
Manufacturer ID | 158381 |
Specifications may be subject to change without notice
