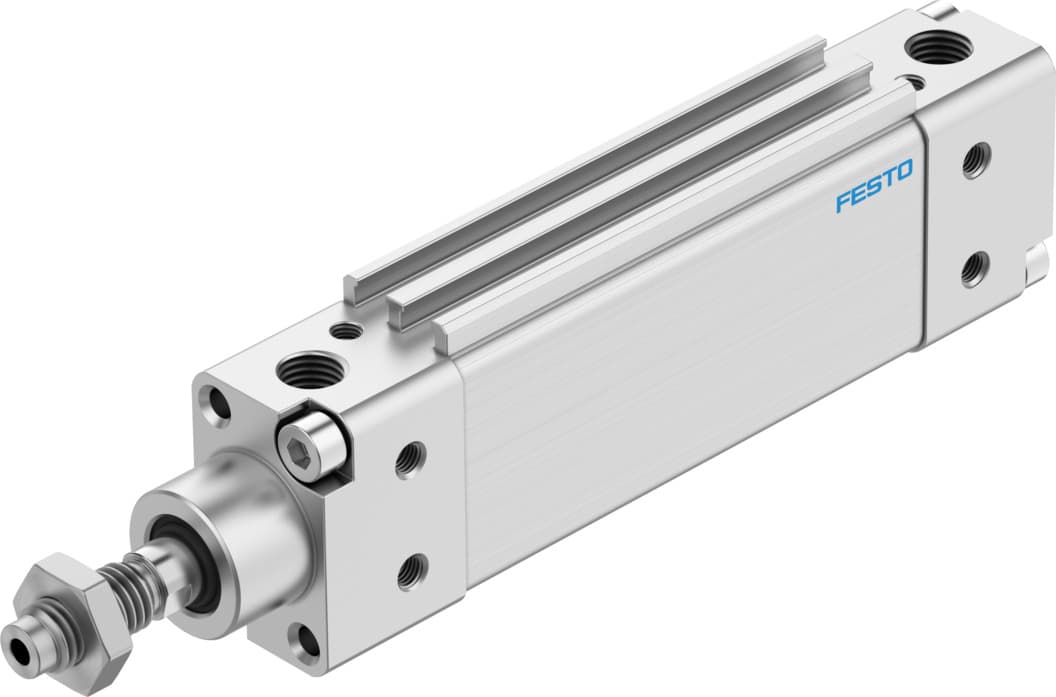

Product Model
dzh-25- -ppv-a-s6
Selling Points
- 1Enhance system stability with adjustable cushioning at both ends.
- 2Built with high-alloy steel piston rod and aluminum housing for durability.
- 3Operate in temperatures from -20°C to 120°C and pressures from 0.1 MPa to 1 MPa.
- 4Suitable for various applications with a stroke range of 1 mm to 500 mm.
- 5Meets CRC 2 standards for moderate corrosion stress and LABS conformity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 1mm 500mm | Piston diameter | 25 mm Equivalent diameter |
Max. angle of rotation of the piston rod +/- | 2.4deg | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991235 | Variants | Heat-resistant seals max. 120°C |
Protection against torsion/guide | Oval piston | Operating pressure | 1bar 10bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -20°C 120°C | Cushioning length | 17mm |
Max. torque for protection against rotation | 0.8Nm | Theoretical force at 6 bar, retracting | 247N |
Theoretical force at 6 bar, advancing | 295N | Additional weight per 10?mm stroke | 21g |
Basic weight with 0?mm stroke | 330g | Type of mounting | Optionally: With internal thread With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Aluminum | Seals material | TPE-U(PU) |
Housing material | Aluminum | Piston rod material | High-alloy steel |
Manufacturer ID | 151158 |
Specifications may be subject to change without notice
