Product Model

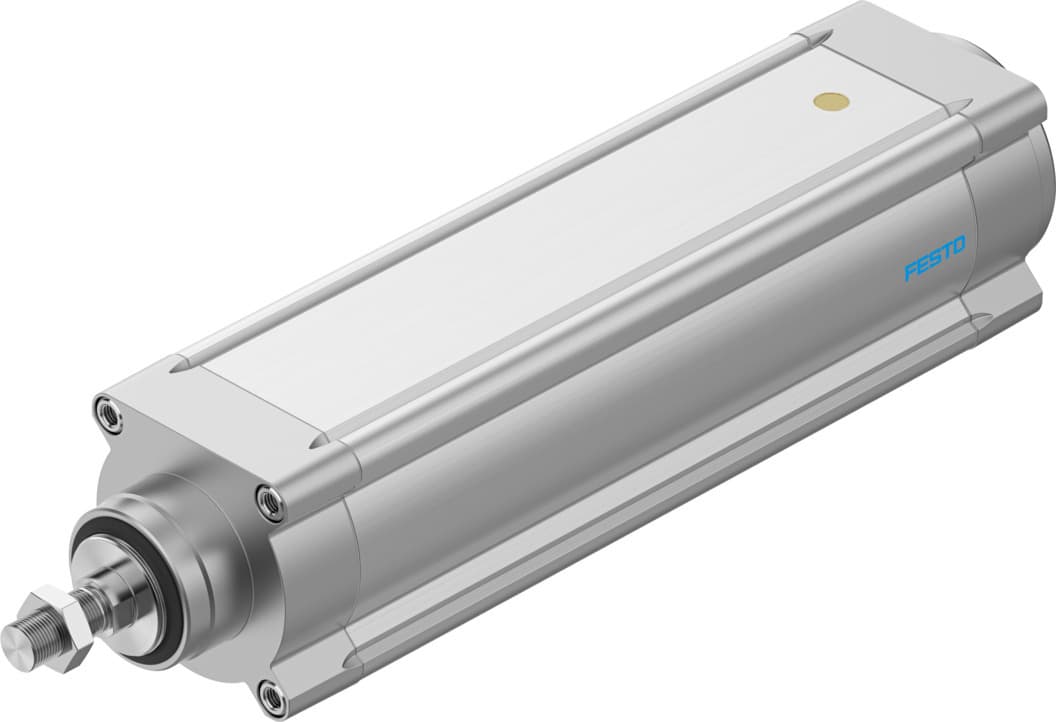

esbf-bs-100-100-40p
Selling Points
- 1High precision linear actuator with ±0.01 mm repetition accuracy.
- 2100mm stroke and 40mm spindle pitch for precise movement control.
- 3Ball screw drive design for smooth and reliable operation.
- 4Servo motor compatible for high-speed and high-torque applications.
- 5ISO 15552 compliant and suitable for use in food processing environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 100 | Stroke | 100mm |
Piston rod thread | M20x1.5 | Reversing backlash | 40μm |
Screw diameter | 40mm | Spindle pitch | 40mm/U |
Max. angle of rotation of the piston rod +/- | 0.5deg | Based on norm | ISO 15552 |
Mounting position | Any | Piston rod end | External thread |
Motor type | Servo motor | Position sensing | For proximity sensor |
Structural design | Electric actuator with ball screw | Spindle type | Ball screw |
Symbol | 00991941 | Protection against torsion/guide | With plain-bearing guide |
Max. acceleration | 25m/s2 | Max. speed | 1.34m/s |
Repetition accuracy | ±0.01 mm | Duty cycle | 100% |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
Storage temperature | -20°C 60°C | For use in the food industry | See supplementary material information |
Relative air humidity | 0 - 95 % | Degree of protection | IP40 |
Ambient temperature | 0°C 60°C | Max. driving torque | 102.6Nm |
Max. radial force on actuator shaft | 1100N | Max. feed force Fx | 14500N |
No-load driving torque | 1Nm | Guide value for payload, horizontal | 1400kg |
Guide value for payload, vertical | 1400kg | Mass moment of inertia JH per meter of stroke | 20.372kgcm2 |
Mass moment of inertia JL per kg of payload | 0.40528kgcm2 | Mass moment of inertia JO | 6.1704kgcm2 |
Moving mass at 0?mm stroke | 8786g | Additional moving mass per 10?mm stroke | 132g |
Basic weight with 0?mm stroke | 11123g | Additional weight per 10?mm stroke | 193g |
Type of mounting | With internal thread or accessory | Interface code, actuator | D100 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston rod material | High-alloy stainless steel | Material of screws | Steel, galvanized |
Spindle nut material | Roller bearing steel | Spindle material | Roller bearing steel |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 574122 |
Specifications may be subject to change without notice
