Product Model

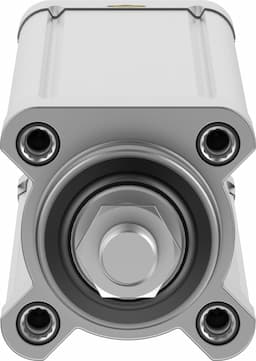

esbf-bs-40-100-10p
Selling Points
- 1Precise Linear Motion: Converts rotary motion of the motor into linear motion of the piston rod with high accuracy.
- 2Robust Construction: Designed with a ball screw drive for optimal force-speed ratio and durability.
- 3Compact Size: Compact size (40 mm) with a working stroke of 100 mm, perfect for space-constrained applications.
- 4High Corrosion Resistance: Meets Festo's standard for corrosion resistance, suitable for industrial environments.
- 5Versatile Mounting Options: Can be mounted with female thread or accessories, allowing for flexible installation positions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 40 | Stroke | 100mm |
Piston rod thread | M12x1.25 | Reversing backlash | 30μm |
Screw diameter | 16mm | Spindle pitch | 10mm/U |
Max. angle of rotation of the piston rod +/- | 0.2deg | Based on norm | ISO 15552 |
Mounting position | Any | Piston rod end | External thread |
Motor type | Stepper motor Servo motor | Position sensing | For proximity sensor |
Structural design | Electric actuator with ball screw | Spindle type | Ball screw |
Symbol | 00991941 | Protection against torsion/guide | With plain-bearing guide |
Max. acceleration | 15m/s2 | Max. speed | 0.83m/s |
Repetition accuracy | ±0.01 mm | Duty cycle | 100% |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
Storage temperature | -20°C 60°C | For use in the food industry | See supplementary material information |
Relative air humidity | 0 - 95 % | Degree of protection | IP40 |
Ambient temperature | 0°C 60°C | Max. driving torque | 5.6Nm |
Max. radial force on actuator shaft | 130N | Max. feed force Fx | 3000N |
No-load driving torque | 0.2Nm | Guide value for payload, horizontal | 300kg |
Guide value for payload, vertical | 300kg | Mass moment of inertia JH per meter of stroke | 0.4804kgcm2 |
Mass moment of inertia JL per kg of payload | 0.02533kgcm2 | Mass moment of inertia JO | 0.0777kgcm2 |
Moving mass at 0?mm stroke | 467g | Additional moving mass per 10?mm stroke | 26g |
Basic weight with 0?mm stroke | 1237g | Additional weight per 10?mm stroke | 47g |
Type of mounting | With internal thread or accessory | Interface code, actuator | D40 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy, smooth-anodized |
Piston rod material | High-alloy stainless steel | Material of screws | Steel, galvanized |
Spindle nut material | Roller bearing steel | Spindle material | Roller bearing steel |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 8022577 |
Specifications may be subject to change without notice
