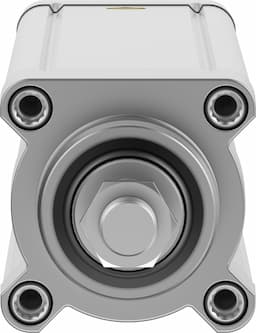

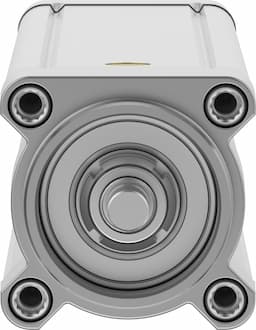

Product Model
esbf-bs-63-400-10p
Selling Points
- 1High Precision Ball Screw Drive: Achieve precise movements with our 63mm mechanical linear drive unit.
- 2400mm Stroke and 10mm Spindle Pitch: Ideal for applications requiring long strokes and precise positioning.
- 3ISO 15552 Standard Compliance: Meets international standards for reliability and performance.
- 4Moderate Corrosion Stress Resistance: Designed for indoor applications with moderate corrosive conditions.
- 5IP40 Degree of Protection: Ensures reliable operation in various industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 63 | Stroke | 400mm |
Piston rod thread | M16x1.5 | Reversing backlash | 30μm |
Screw diameter | 25mm | Spindle pitch | 10mm/U |
Max. angle of rotation of the piston rod +/- | 0.4deg | Based on norm | ISO 15552 |
Mounting position | Any | Piston rod end | External thread |
Motor type | Servo motor | Position sensing | For proximity sensor |
Structural design | Electric actuator with ball screw | Spindle type | Ball screw |
Symbol | 00991941 | Protection against torsion/guide | With plain-bearing guide |
Max. acceleration | 15m/s2 | Max. speed | 0.53m/s |
Repetition accuracy | ±0.01 mm | Duty cycle | 100% |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
Storage temperature | -20°C 60°C | For use in the food industry | See supplementary material information |
Relative air humidity | 0 - 95 % | Degree of protection | IP40 |
Ambient temperature | 0°C 60°C | Max. driving torque | 13.1Nm |
Max. radial force on actuator shaft | 700N | Max. feed force Fx | 7000N |
No-load driving torque | 0.45Nm | Guide value for payload, horizontal | 700kg |
Guide value for payload, vertical | 700kg | Mass moment of inertia JH per meter of stroke | 2.8592kgcm2 |
Mass moment of inertia JL per kg of payload | 0.02533kgcm2 | Mass moment of inertia JO | 0.48631kgcm2 |
Moving mass at 0?mm stroke | 1829g | Additional moving mass per 10?mm stroke | 52g |
Basic weight with 0?mm stroke | 3163g | Additional weight per 10?mm stroke | 87g |
Type of mounting | With internal thread or accessory | Interface code, actuator | D60 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston rod material | High-alloy stainless steel | Material of screws | Steel, galvanized |
Spindle nut material | Roller bearing steel | Spindle material | Roller bearing steel |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 574099 |
Specifications may be subject to change without notice
