Product Model

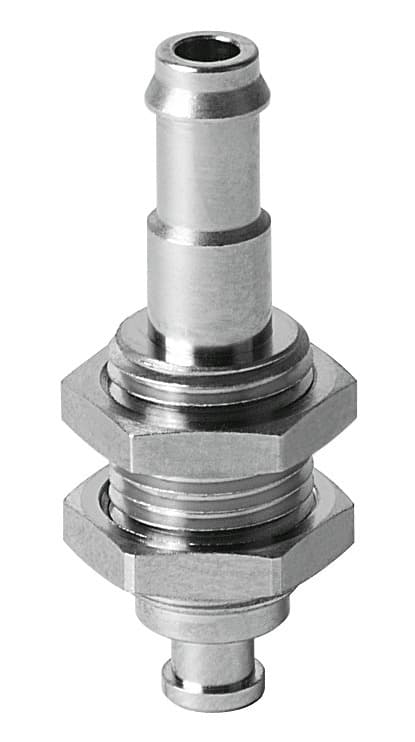

esh-ha-2-pk
Selling Points
- 1Compact design with a nominal width of 2 mm.
- 2Vertical mounting position for versatile installation.
- 3Low corrosion stress with a corrosion resistance class of 1.
- 4Vacuum port on top for efficient suction cup mounting.
- 5RoHS-compliant and made from durable materials like NBR and steel.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width | 2mm | Volume | 0.169cm3 |
Mounting position | Any | Structural design | Vacuum connection at top |
Classification of suction cup holder | Size 2 | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
Ambient temperature | -10°C 60°C | Product weight | 7g |
Type of mounting | With lock nut | Suction cup mounting | Diameter 4 mm |
Vacuum connection | PK-4 | Note on materials | RoHS-compliant |
Seals material | NBR Steel | Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel |
Manufacturer ID | 189196 |
Specifications may be subject to change without notice
