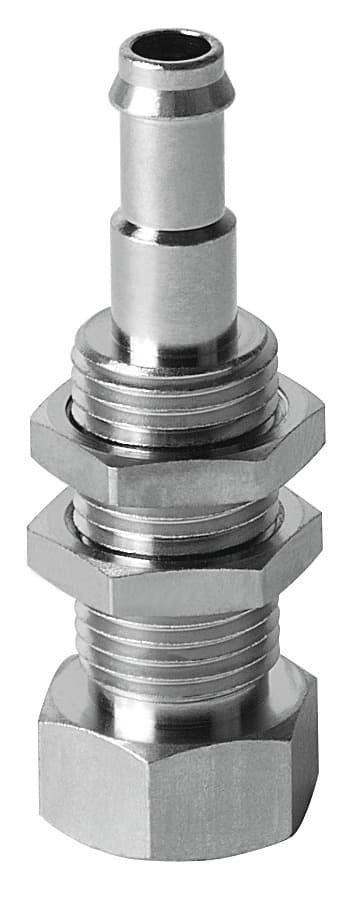

Product Model
esh-ha-3-pk
Selling Points
- 1Lightweight at 10 g, perfect for precision applications.
- 2Mounts via lock nut with M4 suction cup mounting.
- 3Conforms to RoHS standards and has low corrosion stress.
- 4Operates in ambient temperatures from -10 °C to 60 °C.
- 5Features NBR seals and various metal components for durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width | 2.5mm | Volume | 0.274cm3 |
Mounting position | Any | Structural design | Vacuum connection at top |
Classification of suction cup holder | Size 3 | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
Ambient temperature | -10°C 60°C | Product weight | 10g |
Type of mounting | With lock nut | Suction cup mounting | M4 |
Vacuum connection | PK-4 | Note on materials | RoHS-compliant |
Seals material | NBR Steel | Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel |
Manufacturer ID | 189198 |
Specifications may be subject to change without notice
