Product Model

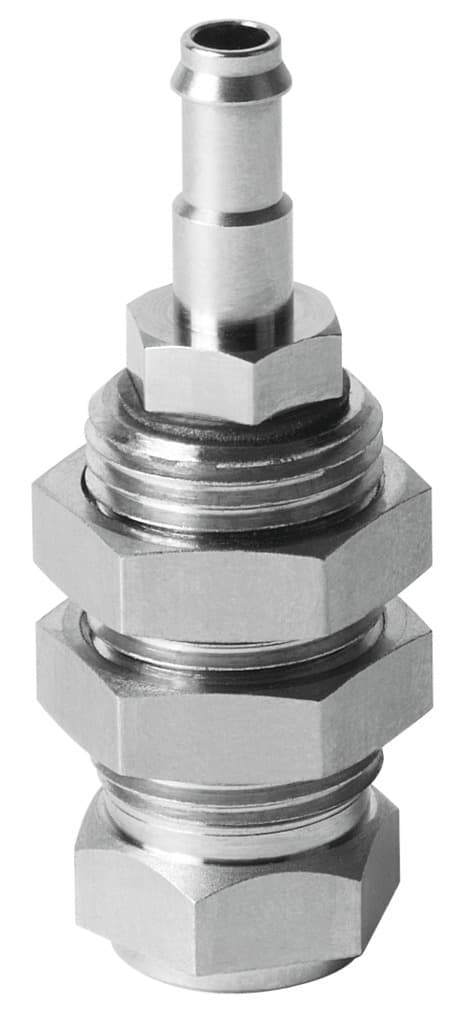

esh-ha-4-pk
Selling Points
- 1Compact design with a nominal size of 2.5 mm.
- 2High-volume efficiency with a volume of 0.668 cm³.
- 3Versatile mounting options via lock nut for secure installation.
- 4Corrosion-resistant materials, including NBR seals and nickel-plated brass.
- 5Compatible with atmospheric air based on ISO 8573-1:2010 for reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width | 2.5mm | Volume | 0.668cm3 |
Mounting position | Any | Structural design | Vacuum connection at top |
Classification of suction cup holder | Size 4 | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
Ambient temperature | -10°C 60°C | Product weight | 23g |
Type of mounting | With lock nut | Suction cup mounting | M6 |
Vacuum connection | PK-4 | Note on materials | RoHS-compliant |
Seals material | NBR Steel | Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel |
Manufacturer ID | 189200 |
Specifications may be subject to change without notice
