Product Model

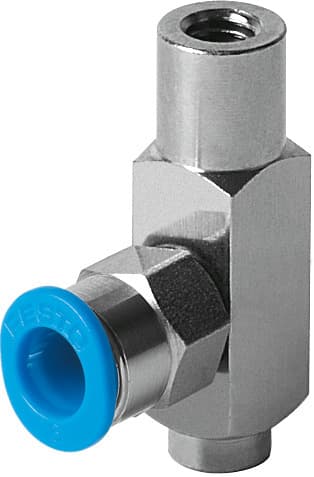

esh-hb-1-qs
Selling Points
- 1Compact design with a volume of 0.228 cm³.
- 2Vertical mounting position for versatile application.
- 3Vacuum port on the side for easy connection.
- 4Low corrosion resistance class CRC 1.
- 5Compatible with Festo's ESH series pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width | 3mm | Volume | 0.228cm3 |
Mounting position | Any | Structural design | Vacuum connection at side |
Classification of suction cup holder | Size 1 | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
Ambient temperature | 0°C 60°C | Product weight | 5g |
Type of mounting | With internal thread | Suction cup mounting | Diameter 3 mm |
Vacuum connection | QS-4 | Note on materials | RoHS-compliant |
Seals material | NBR Steel | Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel |
Manufacturer ID | 189203 |
Specifications may be subject to change without notice
