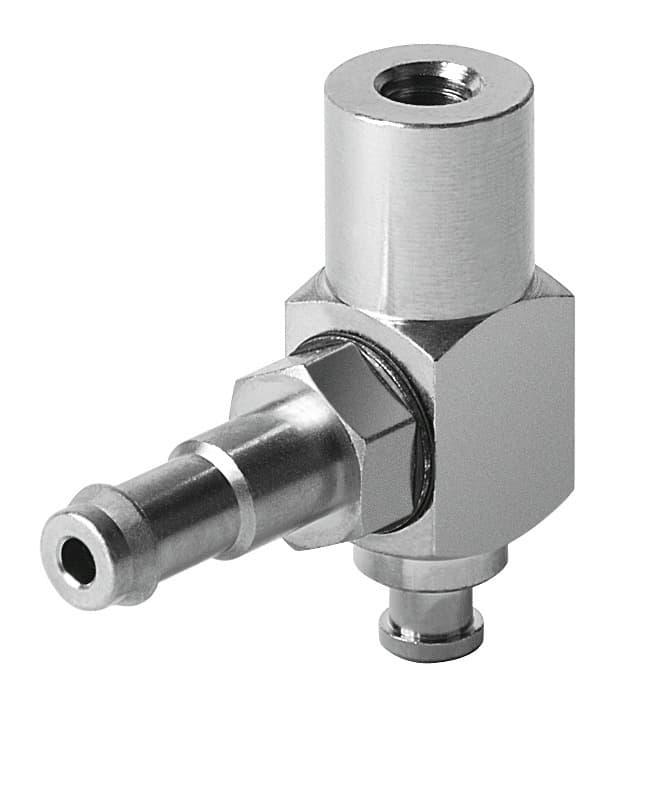

Product Model
esh-hb-2-pk
Selling Points
- 1Weighs only 11 grams for easy handling.
- 2Vertical mounting position for flexible installation.
- 3RoHS compliant with NBR seals and high-alloy steel brackets.
- 4PK-4 vacuum connection ensures reliable suction.
- 5Operates in ambient temperatures from -10°C to 60°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width | 2mm | Volume | 0.188cm3 |
Mounting position | Any | Structural design | Vacuum connection at side |
Classification of suction cup holder | Size 2 | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
Ambient temperature | -10°C 60°C | Product weight | 11g |
Type of mounting | With internal thread | Suction cup mounting | Diameter 4 mm |
Vacuum connection | PK-4 | Note on materials | RoHS-compliant |
Seals material | NBR Steel | Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel |
Manufacturer ID | 189206 |
Specifications may be subject to change without notice
