Product Model

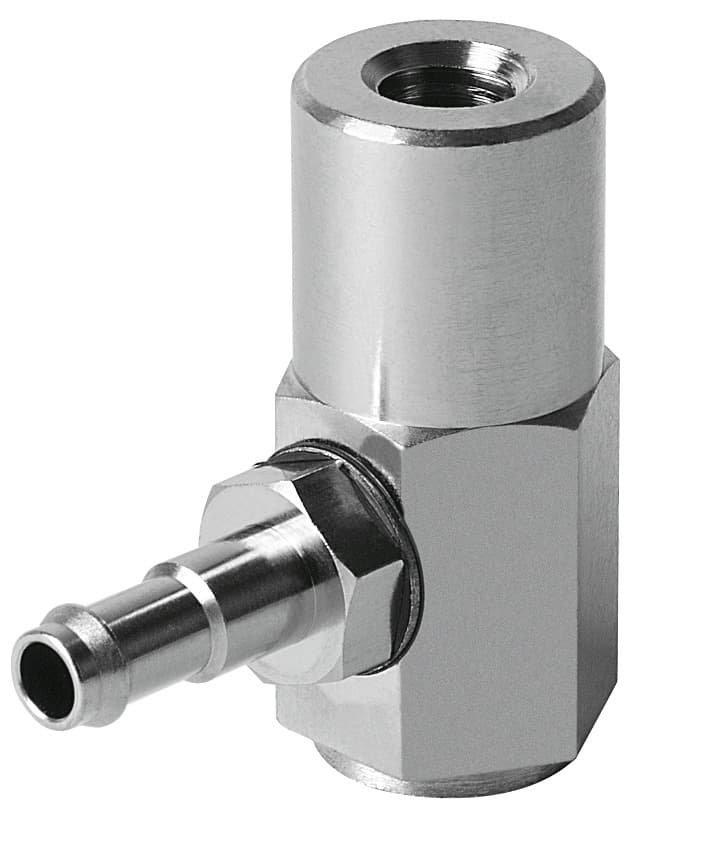

esh-hb-3-pk
Selling Points
- 12.5mm nominal size and 0.313 cm³ volume for efficient use.
- 2Optional mounting position for flexible installation.
- 3Equipped with PK-4 vacuum connection for reliable suction.
- 4Low corrosion stress (CRC 1) and RoHS-compliant materials.
- 5Made from NBR, steel, aluminum, nickel-plated brass, and POM for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width | 2.5mm | Volume | 0.313cm3 |
Mounting position | Any | Structural design | Vacuum connection at side |
Classification of suction cup holder | Size 3 | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
Ambient temperature | -10°C 60°C | Product weight | 27g |
Type of mounting | With internal thread | Suction cup mounting | M4 |
Vacuum connection | PK-4 | Note on materials | RoHS-compliant |
Seals material | NBR Steel | Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel |
Manufacturer ID | 189208 |
Specifications may be subject to change without notice
