Product Model

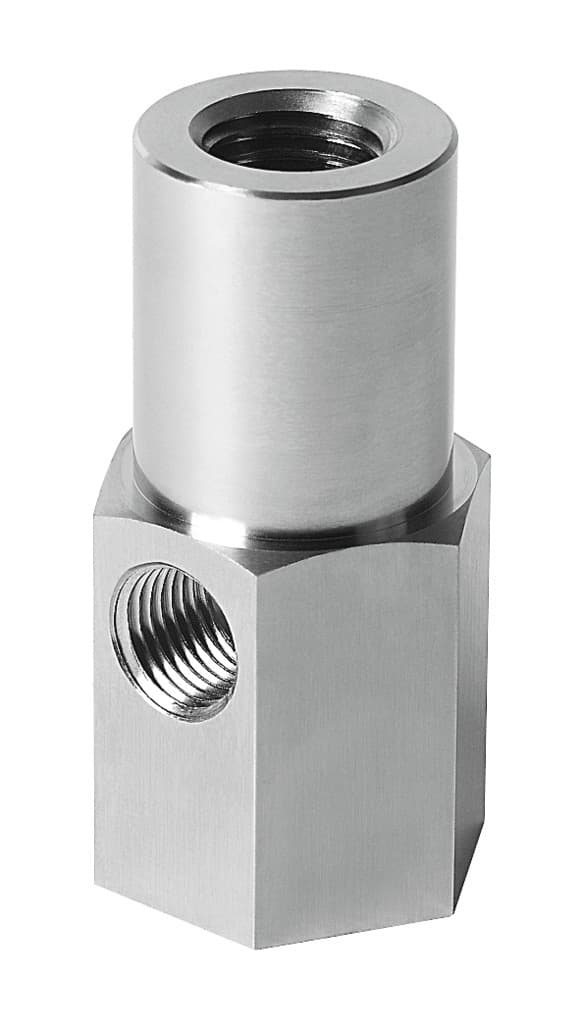

esh-hb-6-g
Selling Points
- 1High-quality construction: Made from high-alloy steel, polyoxymethylene (POM), and tempered steel for durability.
- 2Versatile mounting options: Internal threaded mount and side connection for easy installation.
- 3Wide temperature range: Operates between -10°C to +60°C, ensuring reliability in various environments.
- 4Low-corrosion resistance: Compliant with RoHS standards and CRC Class 1 for minimal corrosion stress.
- 5Multiple holder sizes and types: Part of the ESH series with 6 holder sizes and 8 holder types available.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width | 10mm | Volume | 7.25cm3 |
Mounting position | Any | Structural design | Vacuum connection at side |
Classification of suction cup holder | Size 6 | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
Ambient temperature | -10°C 60°C | Product weight | 271g |
Type of mounting | With internal thread | Suction cup mounting | M20x2 |
Vacuum connection | G1/4 | Note on materials | RoHS-compliant |
Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel | Manufacturer ID | 189212 |
Specifications may be subject to change without notice
