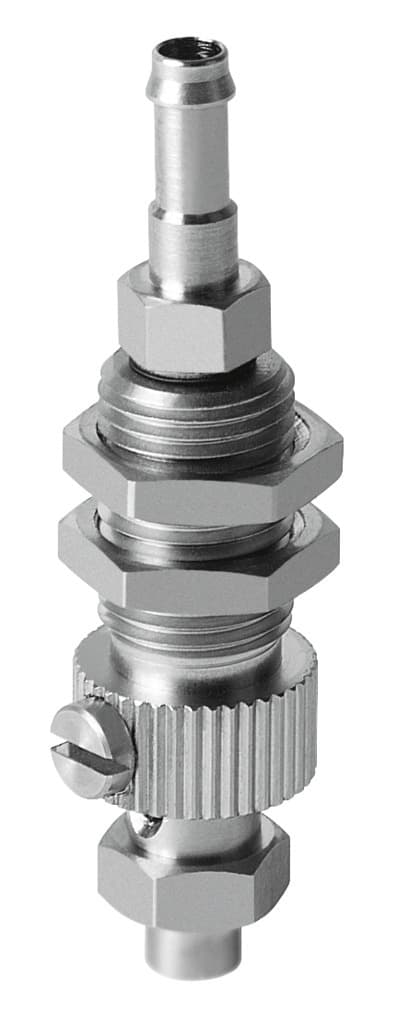

Product Model
esh-hc-1-pk
Selling Points
- 13mm height compensator for precise suction cup alignment.
- 2Compact volume of 0.117 cm³ for efficient design.
- 3Vertical mounting position for easy installation.
- 4Top vacuum connection with height compensation feature.
- 5RoHS-compliant materials ensure environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup holder height compensator | 3mm | Nominal width | 1.2mm |
Volume | 0.117cm3 | Mounting position | Vertical |
Structural design | Vacuum connection at top with height compensation | Classification of suction cup holder | Size 1 |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | -10°C 60°C |
Product weight | 8g | Type of mounting | With lock nut |
Suction cup mounting | Diameter 3 mm | Vacuum connection | PK-3 |
Note on materials | RoHS-compliant | Seals material | NBR Steel |
Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel | Manufacturer ID | 189214 |
Specifications may be subject to change without notice
