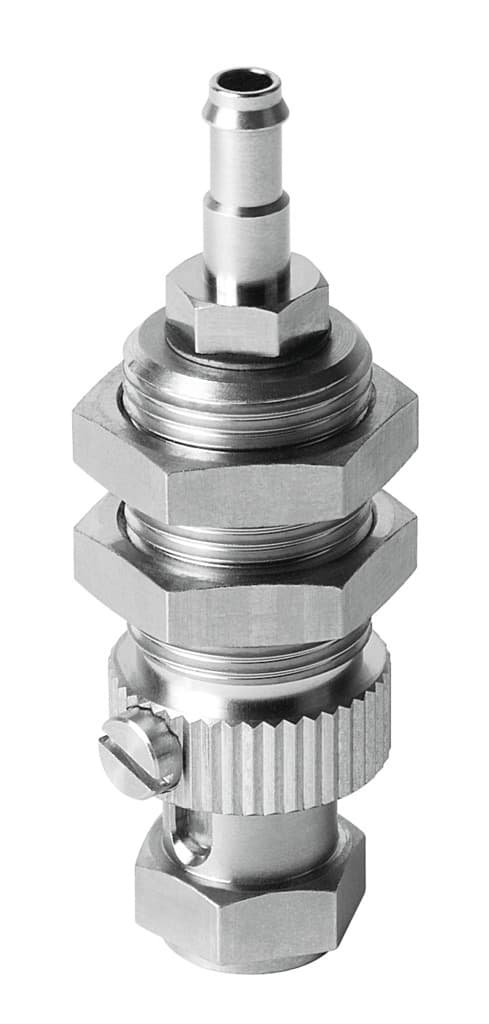

Product Model
esh-hc-3-pk
Selling Points
- 16MM Height Compensator: Ensures stable suction performance across varying surfaces.
- 20.789CCM Volume: Optimized for efficient vacuum operation.
- 3Vertical Mounting Position: Convenient for easy installation and maintenance.
- 4Vacuum Port on Top: Simplifies connection and reduces setup time.
- 5RoHS-Compliant Materials: Meets environmental standards for sustainable use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup holder height compensator | 6mm | Nominal width | 2.5mm |
Volume | 0.789cm3 | Mounting position | Vertical |
Structural design | Vacuum connection at top with height compensation | Classification of suction cup holder | Size 3 |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | -10°C 60°C |
Product weight | 32g | Type of mounting | With lock nut |
Suction cup mounting | M4 | Vacuum connection | PK-4 |
Note on materials | RoHS-compliant | Seals material | NBR Steel |
Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel | Manufacturer ID | 189218 |
Specifications may be subject to change without notice
