Product Model

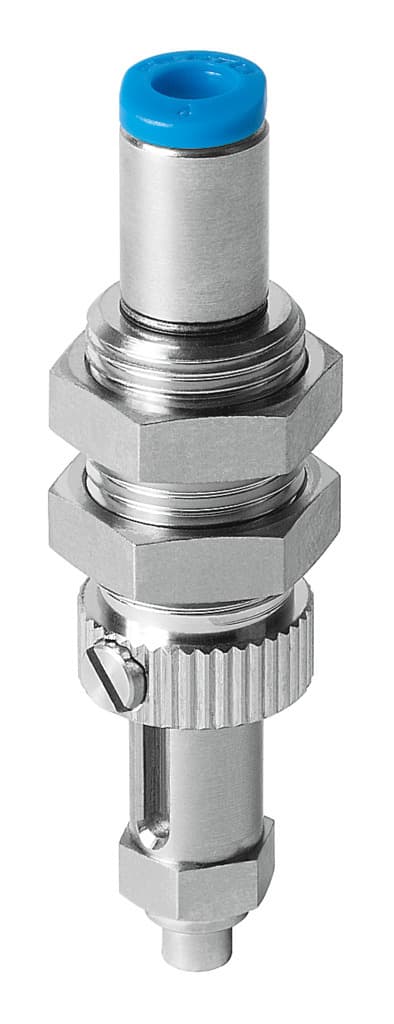

esh-hcl-1-qs
Selling Points
- 1Precision Engineering: Designed with a 10mm height compensator for precise suction-cup holder alignment.
- 2Compact Volume: Features a volume of 0.489 cm³, perfect for space-efficient vacuum systems.
- 3Vertical Mounting: Specifically designed for vertical mounting positions, enhancing stability and reliability.
- 4Low Corrosion Stress: Operates in atmospheric air based on ISO 8573-1:2010, with a corrosion resistance class CRC 1.
- 5Robust Construction: Constructed with NBR seals and nickel-plated brass, ensuring durability and reliability in various industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup holder height compensator | 10mm | Nominal width | 2.8mm |
Volume | 0.489cm3 | Mounting position | Vertical |
Structural design | Vacuum connection at top with height compensation | Classification of suction cup holder | Size 1 |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | 0°C 60°C |
Product weight | 20g | Type of mounting | With lock nut |
Suction cup mounting | Diameter 3 mm | Vacuum connection | QS-4 |
Note on materials | RoHS-compliant | Seals material | NBR Steel |
Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel | Manufacturer ID | 189223 |
Specifications may be subject to change without notice
