Product Model

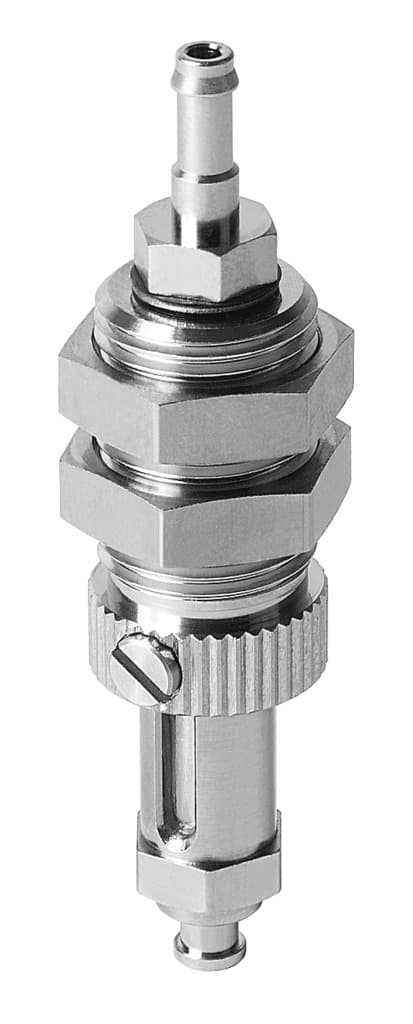

esh-hcl-2-pk
Selling Points
- 1Height Compensator: 10 mm height compensator for precise suction-cup positioning.
- 2Robust Design: Vacuum connection at top with height compensation for reliable operation.
- 3Compact Size: Nominal size of 2.2 mm and volume of 0.398 cm³ for space-efficient mounting.
- 4Corrosion Resistance: Low corrosion stress (CRC 1) and compliance with ISO 8573-1:2010 standards.
- 5Versatile Mounting: Vertical mounting position via lock nut for easy installation in various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup holder height compensator | 10mm | Nominal width | 2.2mm |
Volume | 0.398cm3 | Mounting position | Vertical |
Structural design | Vacuum connection at top with height compensation | Classification of suction cup holder | Size 2 |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | -10°C 60°C |
Product weight | 19g | Type of mounting | With lock nut |
Suction cup mounting | Diameter 4 mm | Vacuum connection | PK-4 |
Note on materials | RoHS-compliant | Seals material | NBR Steel |
Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel | Manufacturer ID | 189226 |
Specifications may be subject to change without notice
