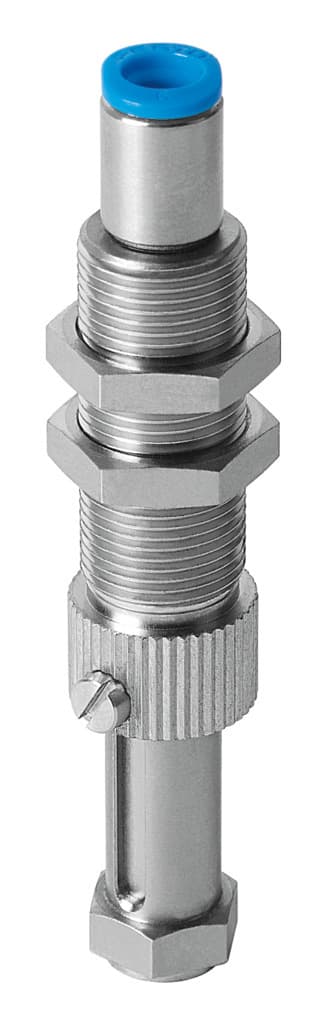

Product Model
esh-hcl-3-qs
Selling Points
- 1Height Compensator: 20 mm height compensator for precise suction-cup positioning.
- 2Robust Materials: Made from high-alloy steel, nickel-plated brass, and POM for durability.
- 3Vertical Mounting: Designed for vertical assembly to ensure efficient vacuum system operation.
- 4Low Corrosion Stress: Meets CRC 1 standards for low corrosion stress in various industrial environments.
- 5Compact Design: Volume of 1.616 cm³ and nominal width of 3.4 mm for space-efficient installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup holder height compensator | 20mm | Nominal width | 3.4mm |
Volume | 1.616cm3 | Mounting position | Vertical |
Structural design | Vacuum connection at top with height compensation | Classification of suction cup holder | Size 3 |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | 0°C 60°C |
Product weight | 48g | Type of mounting | With lock nut |
Suction cup mounting | M4 | Vacuum connection | QS-6 |
Note on materials | RoHS-compliant | Seals material | NBR Steel |
Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel | Manufacturer ID | 189227 |
Specifications may be subject to change without notice
