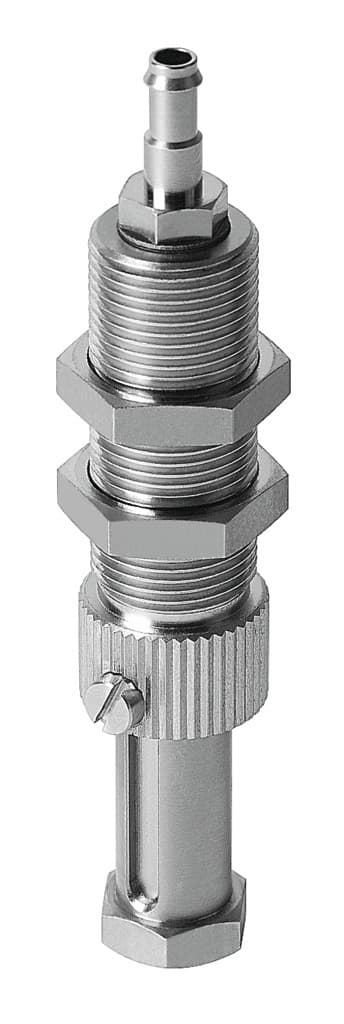

Product Model
esh-hcl-4-pk
Selling Points
- 120 mm height compensator ensures stable suction cup positioning.
- 2Vacuum port on top with height compensator for reliable operation.
- 3Nominal size of 3 mm and volume of 1.535 cm³ for space-efficient mounting.
- 4Vertical mounting position with secure lock nut for easy installation.
- 5Low corrosion stress (CRC 1) and RoHS-compliant materials for durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup holder height compensator | 20mm | Nominal width | 3mm |
Volume | 1.535cm3 | Mounting position | Vertical |
Structural design | Vacuum connection at top with height compensation | Classification of suction cup holder | Size 4 |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | -10°C 60°C |
Product weight | 45g | Type of mounting | With lock nut |
Suction cup mounting | M6 | Vacuum connection | PK-4 |
Note on materials | RoHS-compliant | Seals material | NBR Steel |
Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel | Manufacturer ID | 189230 |
Specifications may be subject to change without notice
