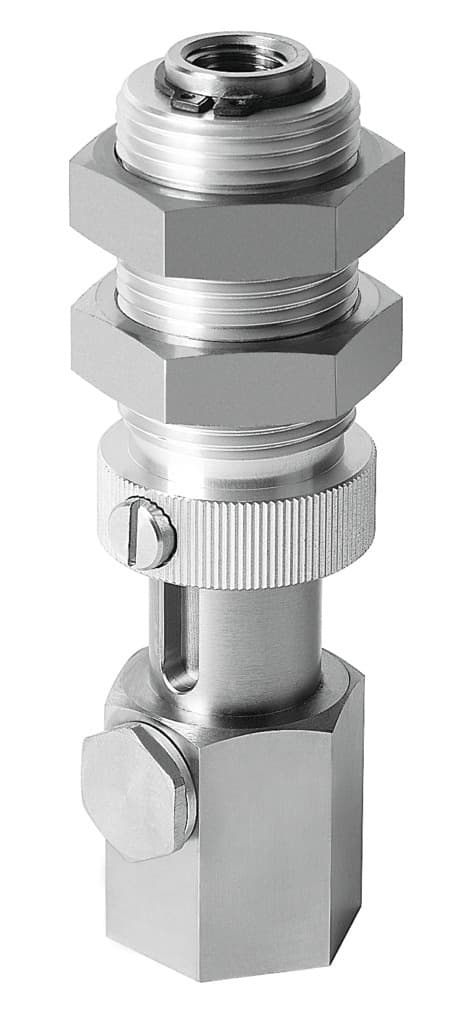

Product Model
esh-hcl-5-g
Selling Points
- 1Precision Vacuum Technology: Ideal for applications requiring precise vacuum control.
- 2Height Compensator: Ensures consistent suction performance regardless of surface height.
- 3M10 Suction Cup Mounting: Easy and secure attachment to various surfaces.
- 4G1/8 Vacuum Connection: Compatible with a wide range of vacuum systems.
- 5RoHS-Compliant Materials: Meets environmental standards for sustainable manufacturing.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup holder height compensator | 30mm | Nominal width | 8.4mm |
Volume | 6.06cm3 | Mounting position | Vertical |
Structural design | Vacuum connection at top with height compensation | Classification of suction cup holder | Size 5 |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | -10°C 60°C |
Product weight | 169g | Type of mounting | With lock nut |
Suction cup mounting | M10 | Vacuum connection | G1/8 |
Note on materials | RoHS-compliant | Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel |
Manufacturer ID | 189231 |
Specifications may be subject to change without notice
